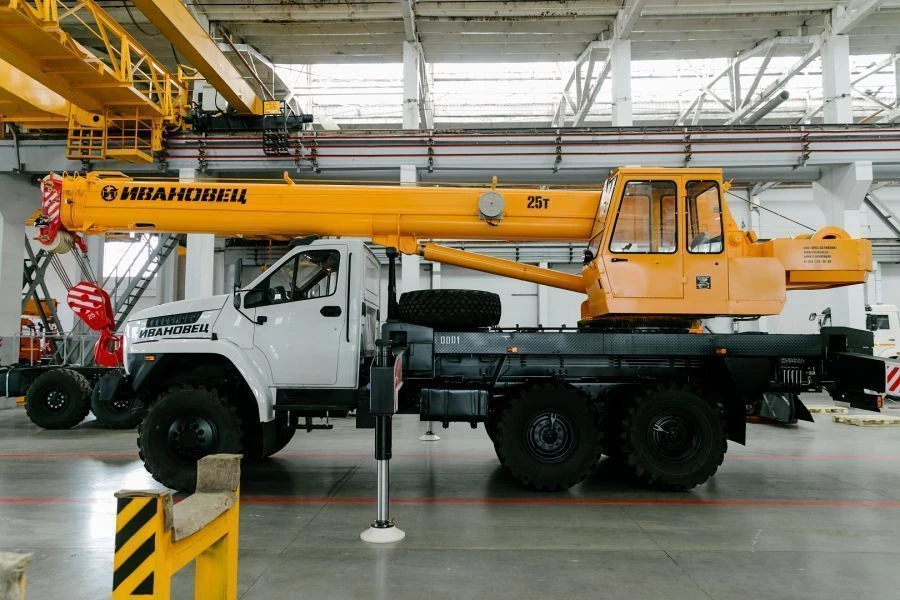

Automotive Crane KS-45717-4 for Construction and Loading Applications

Mobile Truck Cranes

Manufacturer: IMZ AUTOCRANE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The crane is designed for construction and installation, loading and unloading operations with ordinary and hazardous cargoes at dispersed sites. Base chassis - URAL-5557 Next of ecological class 5. Maximum lifting capacity - 25 tonnes.

The crane mechanisms drive is hydraulic with the possibility to combine working operations. Boom - telescopic four-section boom. Boom telescoping - by hydraulic cylinder and chain hoist system.

The material of the boom metal structures is S700MC steel. In order to increase the boom length and under boom space it is possible to equip the boom with a 9.0 m long gooseneck, installed parallel to the main boom or at an angle of 30 degrees. Limitation of load capacity and fixation of crane operation parameters - by means of microprocessor load capacity limiter with digital indication of information and built-in parameter recorder.

Specifications

Type of product according to PP RF 616

Truck cranes

Base machine type

Motor vehicle

Type of undercarriage

Wheeled

Engine type

Diesel

Wheel arrangement

6?6

Rated load capacity

25 t

Rated motor power (her)

300 hp

Gooseneck length

9 m

Telescopic boom

Armoured glass

Climatic version

Availability of heater

Armoured glass

Availability of air conditioning system

Optional

Boom length

24 m

Crane mechanism drive

Hydraulic

Base chassis

Ural-5557

ROPS operator protection device

Availability of FOPS operator protection device

Maximum payload

25 t

Arrow

24 m

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
