Bimetallic Thermometer TBf-226 for Accurate Temperature Measurement in Liquids and Gases

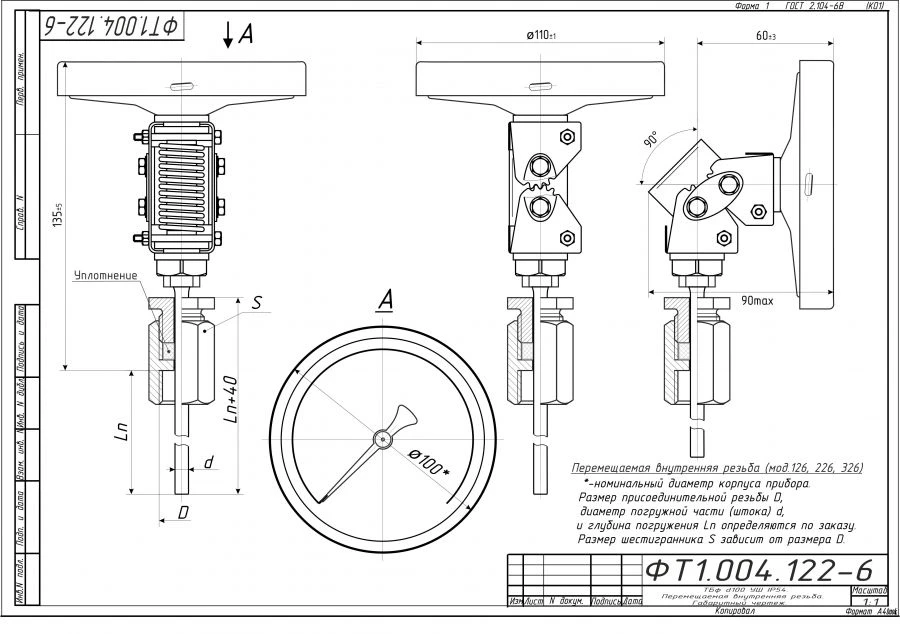

Thermometers bimetallic TBf are designed to measure the temperature of liquid and gaseous media, not aggressive to the material of protective sleeves or thermoballoon (in the absence of a protective sleeve), as well as the temperature of bulk solids and solids. Thermometers are manufactured with universal (USH) location of the thermoballoon relative to the body. The thermometers can have a zero corrector located on the end of the thermoballoon or the body.

The design of the socket is a movable internal thread. Thermometers can be referred to explosion-protected equipment of group II according to GOST 31441.1-2011 (EN 13463-1:2001), GOST 30852.0-2002 (IEC 6079-0:1998) and are intended for use in places (except underground mine workings and their above-ground structures) dangerous for explosive gas environments in accordance with the assigned explosion protection marking.
