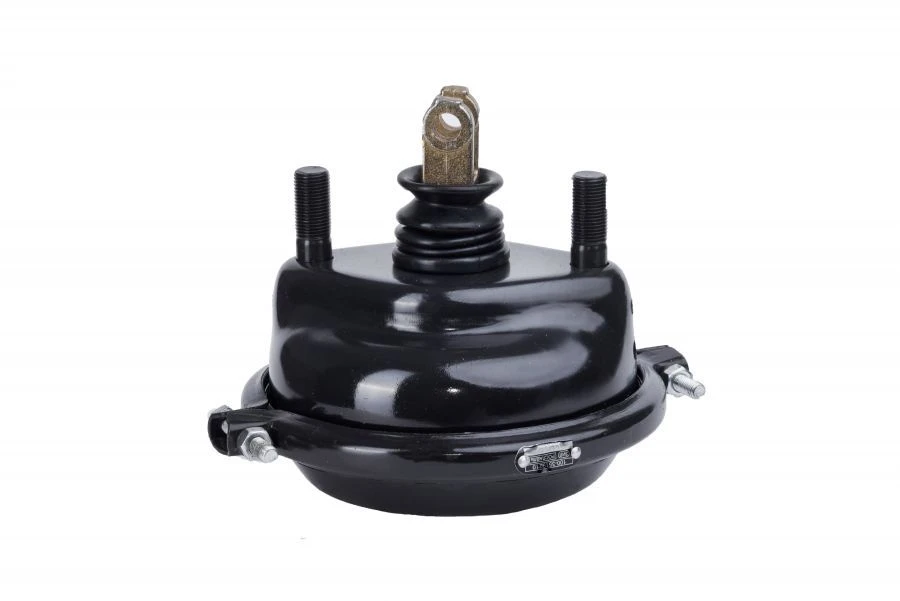

Brake Chamber Type 24 for Efficient Brake Mechanism Activation

Pneumatic Brake Chambers

Manufacturer: ROSSLAVL BRAKE SYSTEMS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Brake chamber type 24 100-3519210

Description

Brake chamber is designed to convert the energy of compressed air into work to drive braking mechanisms

Specifications

Equipment

Brake chamber - 1 pc. Transport plug - 1 pc. Passport- 1 pc. Packing- 1 pc.

Assignment

The brake chamber is designed to convert the energy of compressed air into work to actuate braking mechanisms.

Disposal information

The procedure for disposal of the product shall be determined by the Consumer.

Manufacturer's warranty

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Storage conditions

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Stem outreach L

58 mm

Bolt spacing A

120 mm

Diameter of the connection hole in the plug d1

B1/B8 2100/900 MHz mm

Width of fork slot B

12.5 mm

Connection thread of the mounting bolts d2

16 mm

Outreach of mounting bolts l

40 mm

Air inlet connection thread D

16 mm

Weight

3.47 kg

Temperature range

-46...80 °C

Stroke

57 mm

Working pressure

0.8 MPa

Installation of the apparatus

In accordance with the vehicle manufacturer's documentation

Maintenance of the brake chamber

In accordance with the operating manual of the motor vehicle for which the product is intended.

Safety measures

Before carrying out assembly and disassembly work on the flange connection of the brake chamber, make sure that the brake is not applied (no compressed air pressure in the chamber cavity).

Environment

Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.

Operating medium

Compressed air, oil and water vapors may be present.

Certificate of Conformity

NO. EAES RU C-RU.MT14.V.00124/19

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
