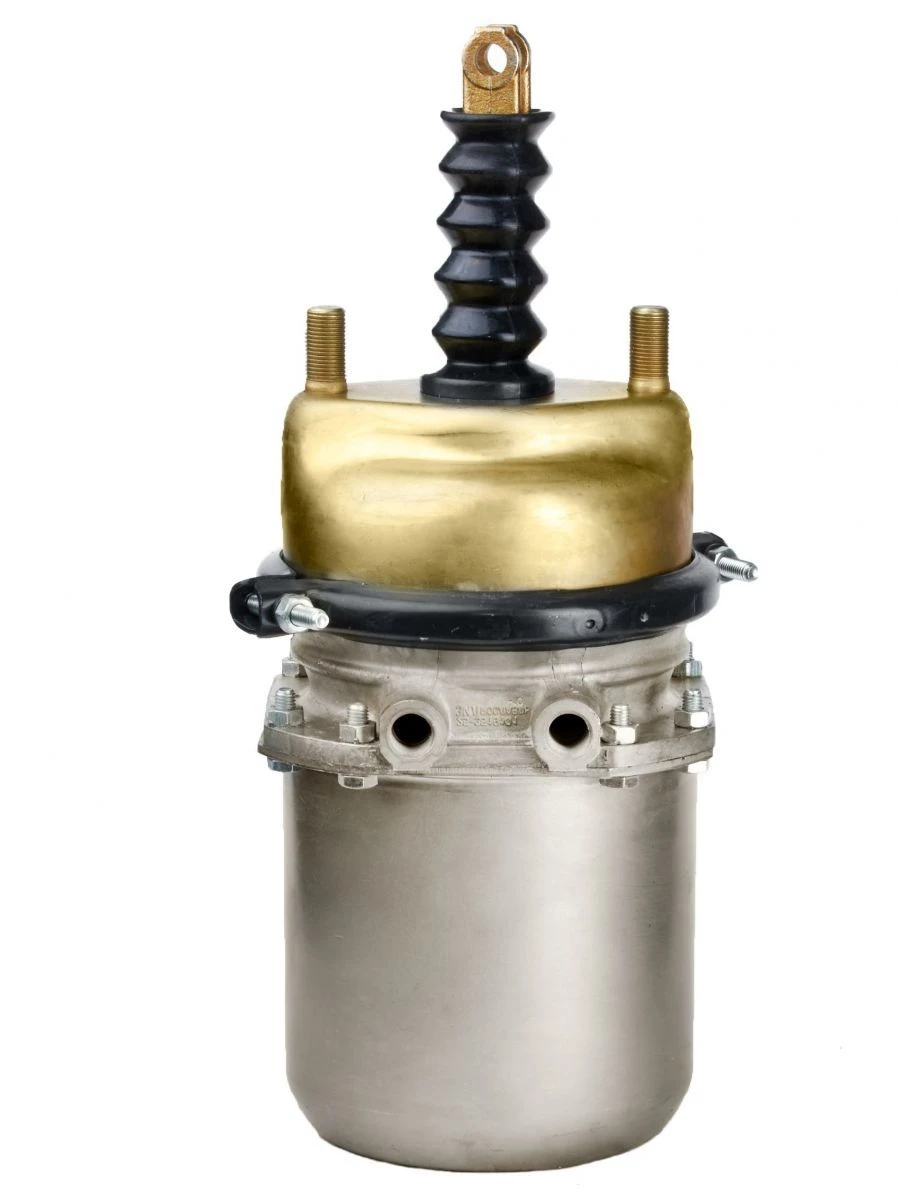

Brake Chamber with Spring Energy Accumulator Type 20/20 25.3519101-30

Available for Import

Brake Chamber with Spring Energy Accumulator for Reliable Braking Systems

Pneumatic Brake Chambers

Manufacturer: ROSSLAVL BRAKE SYSTEMS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Brake chamber with spring energy accumulator is designed to actuate braking mechanisms of service, reserve and parking brakes. The spring energy accumulator is equipped with an integrated by-pass drain valve.

Specifications

Manufacturer's warranty

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Storage conditions

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Certificate of Conformity

NO. EAES RU C-RU.MT14.V.00124/19

Safety measures

Repairs without special equipment are not permissible. For assembly work, be aware of the inscription on the flange of the spring energy accumulator "CAUTION! SPRING IS UNDER TENSION".

Maintenance of the brake chamber

In accordance with the operating manual of the motor vehicle for which the product is intended to be used

Installing the brake chamber

In accordance with the vehicle manufacturer's documentation

Spring-loaded energy accumulator tripping pressure

0.48...0.54 MPa

Working pressure

1 MPa

Mechanical brake release unit screw key size

26.67...27 mm

Center distance of the air inlet connections

56 mm

Spring travel of the energy accumulator

64...67 mm

Diaphragm stroke

71...75 mm

Clamp installation angle ?°

150

Air inlet connection thread D

16 mm

Connection thread of the mounting bolts d2

16 mm

Width of fork slot B

14.2 mm

Diameter of the connection hole in the plug d1

B1/B8 2100/900 MHz mm

Bolt spacing A

120 mm

Stem outreach L

58 mm

Weight

10.4 kg

Angle of turning of air inlet leads ?°, deg.

180

Disposal information

The procedure for disposal of the product shall be determined by the Consumer.

Outreach of mounting bolts l

32 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
