Cargo Trailer 843431 with Load Space Frame and Platform

Available for Import

Cargo Trailer 843431 for Safe and Efficient Cargo Transport

Heavy Duty Trailers

Manufacturer: NOVOSIBARZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Trailer 843432 (loading space design - load-bearing frame, platform)

Description

The trucks are designed for carriage of various cargoes, including long cargoes on roads of all categories of the general road network. They are equipped with container locks for carriage of various types of containers, including tank containers. Technically permissible maximum mass of the vehicle is 24000-30000 kg.

Loading space - load-bearing frame with all-metal open platform. Drawbar with coupling loop of 50 mm diameter or 57,5 mm diameter. Axles 9 tonnes manufactured by "Plant" Ltd.

or Axle unit 9 tonnes. BPV-Ost Ltd. Tyres 385/55 R22,5; 385/65 R22,5 manufactured by JSC "Kordiant"/ LLC "Nizhnekamsk Tyre Plant CMK".

Wheel discs manufactured by OOO "AccuRide Wheels Russia" or PJSC "ChKPZ". Receiver manufactured by OOO TD "AUTOTECHNOLOGIA". Lighting equipment manufactured by OOO "Atlanta".

Floor level crane manufactured by VBK Vostok Ltd.

Specifications

Base machine type

truck

Climatic version

UHL

Type of trailer

General purpose; container carrier; flatbed truck

Number of axles

3 pcs

Front track

2000...2050 mm

Rear track

2000...2050 mm

Axle load capacity

8...10 t

Maximum length

15000 mm

Width

2550...3300 mm

Maximum height

4300 mm

Ergonomic parameters

Paintwork coatings used on the exterior surfaces of trailers may be painted or repainted with natural drying paints; the forces required to lift the spare wheel do not exceed 500 N (50 kgf). When using mechanisms

Warranty period

B1/B8 2100/900 MHz

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Scope of application

Designed for transportation of various cargoes, including assorted and other long cargoes, containers of various types, including tank containers on roads of all categories of the general road network.

Technically permissible maximum mass of the vehicle

24000...30000 kg

Vehicle kerb weight

5000...14000 kg

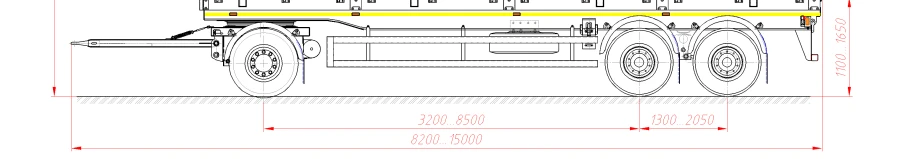

Base

3200...8500+1300...2050

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
