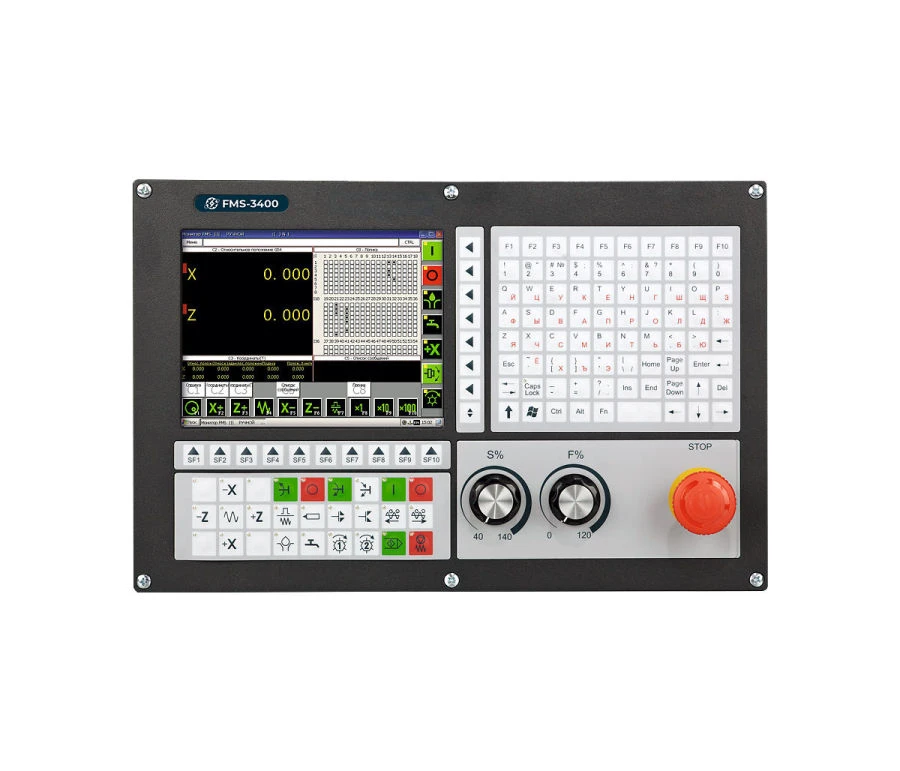

Compact CNC System for Lathes and Milling Machines FMS-3400

CNC Control Devices

Manufacturer: MODMASH-SOFT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The FMS-3400 is a compact CNC system for controlling all the most common types of lathes and milling machines.

Specifications

Programming of control technological programs

ISO (Fanuc-compatible), Macroprogramming, Export from DXF files

Programmable controller (PLC)

Got it

Number of digitally controlled axes/spindles

4 pcs

Number of additional spindles with analog control

4 pcs

Number of interpolated axes

4 pcs

Types of interpolation

Linear, Circular, Linear-circular, Circular in space, Spline, Functional

Total number of digital inputs/outputs

96 pcs

Total number of remote digital inputs/outputs

384 pcs

Connecting the touch probes

Got it

USB connection

Got it

Internet connection

Got it

Alphanumeric keypad

Got it

Display diagonal size

Number of buttons on the machine console

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
