Current Transformer TLP-10-1 M3Available for Import

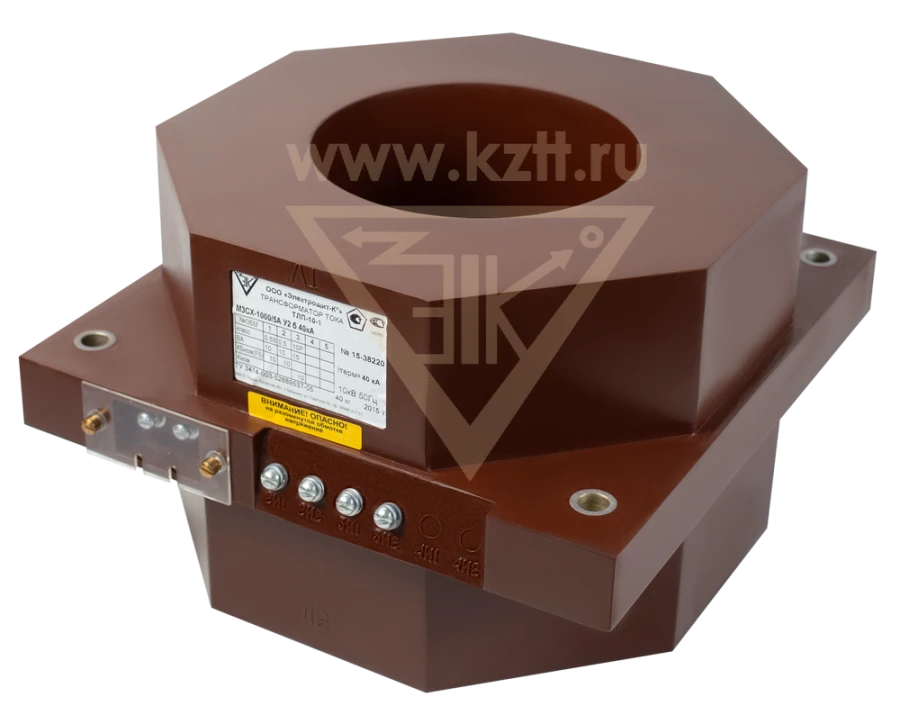

Current Transformer TLP-10-1 M3 for Internal and External Power Distribution

Low-Power Electrical Transformers
Manufacturer:ELECTROSHIT-K° LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

TLP-10-1 current transformer is designed for installation in complete switchgear (switchgear) indoor and outdoor installation, as well as prefabricated single-sided service chambers (CSR) and is a component product.Current transformer provides signal transmission of measurement information to measuring devices and protection and control devices, to isolate secondary connection circuits from high voltage in electrical installations of alternating current for voltage class up to 10 kV.Climatic design U, UHL or T, category

Specifications

Overall dimensions, (DxWxH), not more than
330x320x210
Rated secondary current, A
1; 5
Rated primary current, A
500-5000
Rated voltage, kV
10
Highest operating voltage, kV
B1/B8 2100/900 MHz
Number of secondary windings
up to 5
Accuracy classes of secondary windings for measuring and metering according to GOST 7746
0,2S; 0,2; 0,5S; 0,5; 1; 3
Accuracy classes of secondary windings for protection according to GOST 7746
5P; 10P
Accuracy classes of secondary windings for protection according to GOST R IEC 61869-2
5RR; 10RR; TPY; TPZ; PX; TPX; PX; PXR
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
