Cyclone Dust Separator Type BBC-475 for Air Filtration in Grain Processing

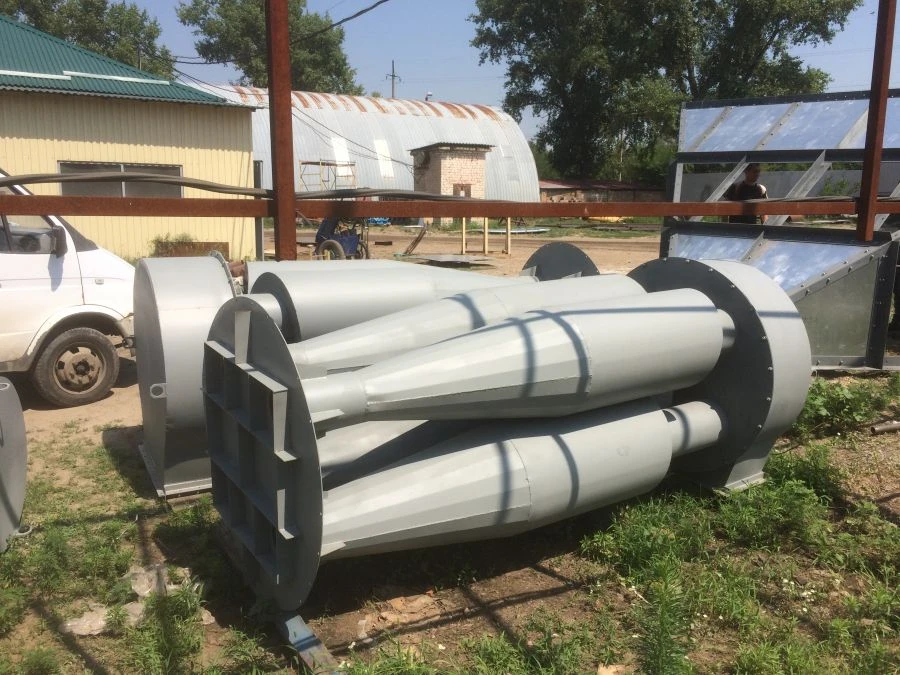

Cyclones of BBC type are designed for air cleaning from dry non-sticky, non-fibrous dust in pneumatic conveying and aspiration systems at grain processing and storage enterprises, food industry and agricultural enterprises. Device and principle of operation Battery cyclone type BBC is a welded construction made of sheet steel, 1,5 mm thick. It is installed both on the suction and on the discharge side of the fan. The main working body are 4 separately operating cyclones, from which the cleaned air is discharged through the upper box, and the dust settles in the lower collection cone, from which it is discharged through the sluice gate.
