Digital Repeater KORSAR KRR-785 D2 (146 - 174 MHz)

Available for Import

Digital Repeater KORSAR KRR-785 D2 for Enhanced DMR Communication

Radio Communication Devices

Manufacturer: A.T.K. LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

KORSAR KRR-785 D2 repeater (400 - 470 MHz)

Description

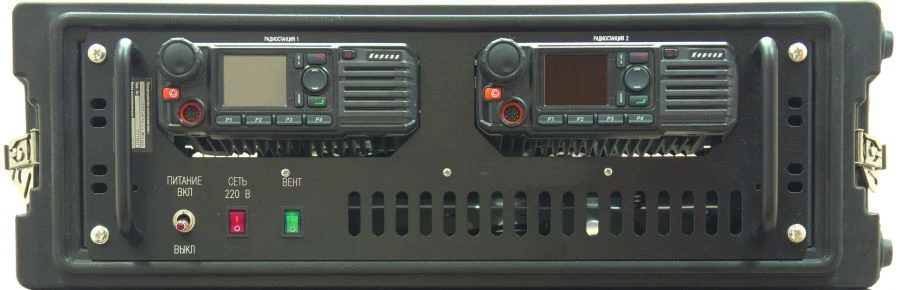

Repeater "KORSAR KRR-785 D2" (146 - 174 MHz) is designed to work as a trace repeater in the mode of digital standard ETSI TS 102 361 (DMR) in the VHF range in radio networks of land mobile communication, including in radio communication systems using digital masking of transmitted information, implemented in radios "KORSAR" with changeable keys in accordance with GOST R 34.12-2015, GOST R 34.13-2015. The repeater can be used: <ul> <li>- to create a mobile digital radio communication network consisting of several similar repeaters forming a chain;</li> <li>for retransmission of radio signals between zone repeaters;</li> <li>to organise radio communication between trace repeaters in a dual-band repeater network.</li> </ul>Depending on the delivery set the repeater can be used as a stationary or portable.

Specifications

Maximum value of the operating radio frequency range

146...174

Maximum value of the operating temperature range

55 °C

Minimum value of the operating temperature range

-25 °C

Number of channels

1024

Frequency grid step

Maximum power output

40 W

Protection class

Antenna with installation kit and cable included

Availability of power supply unit from 220 V mains, built-in

Armoured glass

Built-in remote controller via Ethernet

Communication modes

Digital

Average MTBF

6500

Digital Standard

DMR

Equipment

Repeater, 220 V power supply cable, 12 V external power supply cable, RE, FO, individual packing

Overall dimensions

590 x 210 x 570 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
