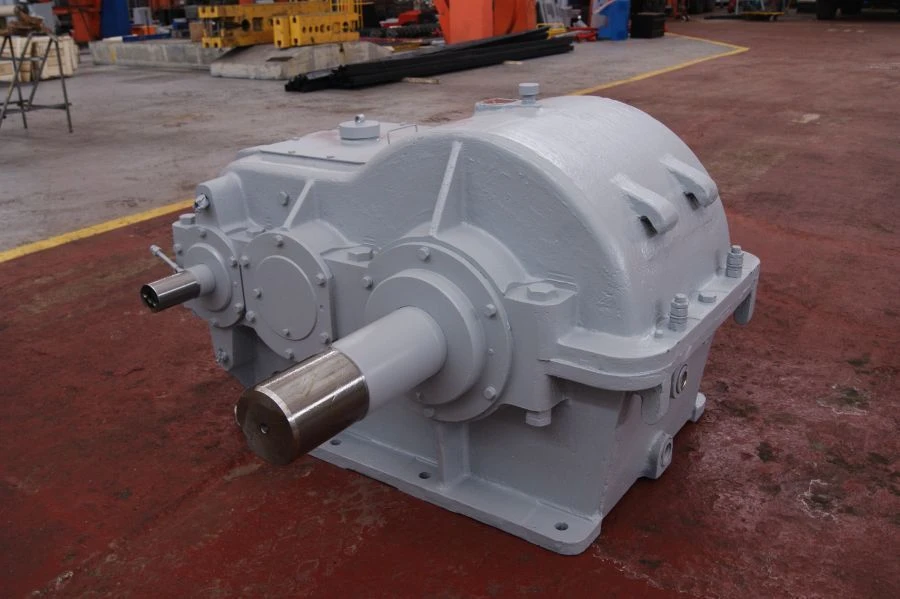

Drive Reducer for Rod Pump Applications - Optimized for Cold Climates
Manufacturer:
PJSC "IZHNEFTEMASH"
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The reducer is designed for use in drives of borehole rod pumps in temperate and cold macroclimatic regions according to GOST 16350-80. The reducer is used in cases when:
- the load is constant and variable in magnitude;
- shaft rotation in one direction;
- input shaft rotation frequency is not more than 1500 min-1
High-speed and low-speed stages - chevron gear with thermally improved Novikov gearing.
- the load is constant and variable in magnitude;
- shaft rotation in one direction;
- input shaft rotation frequency is not more than 1500 min-1
High-speed and low-speed stages - chevron gear with thermally improved Novikov gearing.
Specifications
Weight
2105...4050 kg
Gearbox type
Two-stage RP or three-stage PT
Gear ratio
40...125
Maximum torque on output shaft
28 kN*m-60 kN*m
