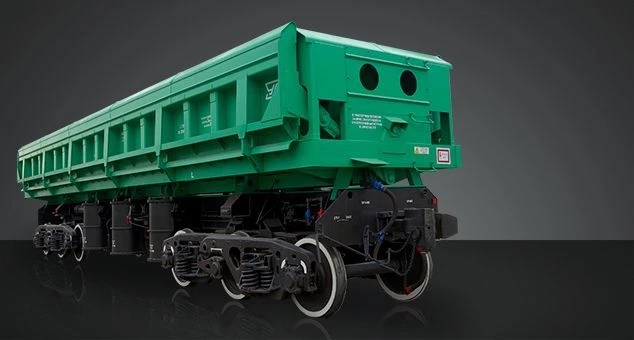

Dump Car for Mechanized Loading, Unloading, and Transport Model 33-5170

Available for Import

Dump Car for Efficient Mechanized Loading and Transport - Model 33-5170

Rail Dump Wagons

Manufacturer: URALVAGONZAVOD OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Dumpcar is designed for mechanised loading, unloading and transportation of bulk and lump cargoes on mainline railways, tracks of industrial organisations, construction, open-pit mining of 1520 mm gauge of the Russian Federation. Dumpcar should be manufactured in UHL version of placement category 1 according to GOST 15150-69 to ensure operational reliability in the ambient air temperature range from minus 60°? to plus 50°?.

The dump truck is unloaded to either side of the railway track by tilting the body by 45° with the help of pneumatic cylinders suspended on the lower frame, three on each side.

Specifications

Type of product according to PP RF 616

Dumpcars dump cars)

Number of axles

6 pcs

Maximum design static load from wheelset on rails, kN (tf)

216 (22)

Static linear load, kN/m (tf/m)

86,13 (8,78)

Geometric volume of the body

Length of the dump truck along the coupling axes of the coupling couplers

15036 mm

Base for dump truck

9340 ±5 mm

Body dimensions inside

- length at floor level 12978**; - width 2580**; - height 1271**. mm

Height from level of rail head to top strapping

3383+45-35 mm

Body tilt angle at unloading, degree, not less than

45 °C

Angle of fracture of the side in relation to the body, deg.

3-11 °C

Working pressure in cylinders at unloading, not more than

0.7 MPa

Number of tilt cylinders

6 pcs

Dimension according to GOST 9238

- 1-T bodies; - 02-VM bogies

Design speed

100

Permissible operational speed on industrial transport tracks, km/h, not more

- empty 70; - loaded 40.

Design impact load

3 tonnes from a height of 3 m on a backfill of at least 300 mm

Payload

80 t

Tare weight

51 t

Minimum permissible tare weight in operation

47.96 t

Minimum curve radius for single dump truck

60 m

Body width

3092 mm

Height of coupler axis from rail head level

1040...1080 mm

Rolling cart model

18-522A according to TU 3183-021-07518941

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
