Flat Conductor Holder DP-50HZ-02.190PL Available for Import

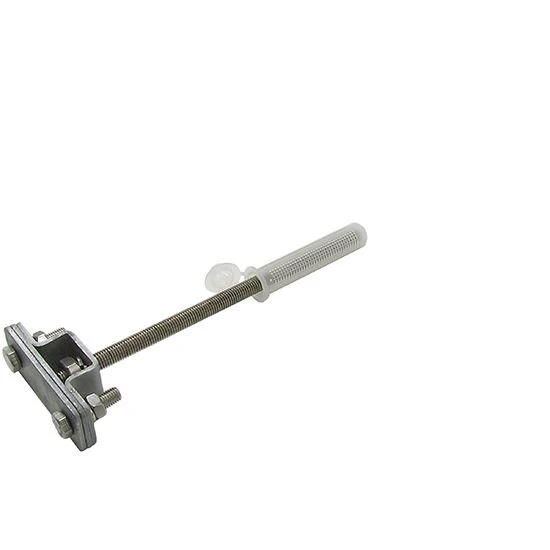

Flat Conductor Holder for Grounding and Lightning Protection - DP-50HZ-02.190PL

Metal Hardware Products
Manufacturer: ELMASHPOM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Designed for fixing and connecting (parallel) flat (30-50) x (3-6) mm clamped conductors (lightning protection current collectors and grounding conductors) made of hot-dip galvanised steel to walls, plinths and ceilings made of the following materials: concrete, full-body brick, natural stone. Fastening is made with the help of a chemical anchor through the insulation made of non-combustible materials. Used as part of lightning protection, earthing and equipotential bonding systems. Made of steel coated with hot zinc according to GOST 9.307-89, fasteners made of stainless steel.

Specifications

Weight
0.335 kg
Material
Material of bracket and holder plates: steel with hot zinc coating according to GOST 9.307-89
Size
78...30 mm
Type
conductor holder
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
