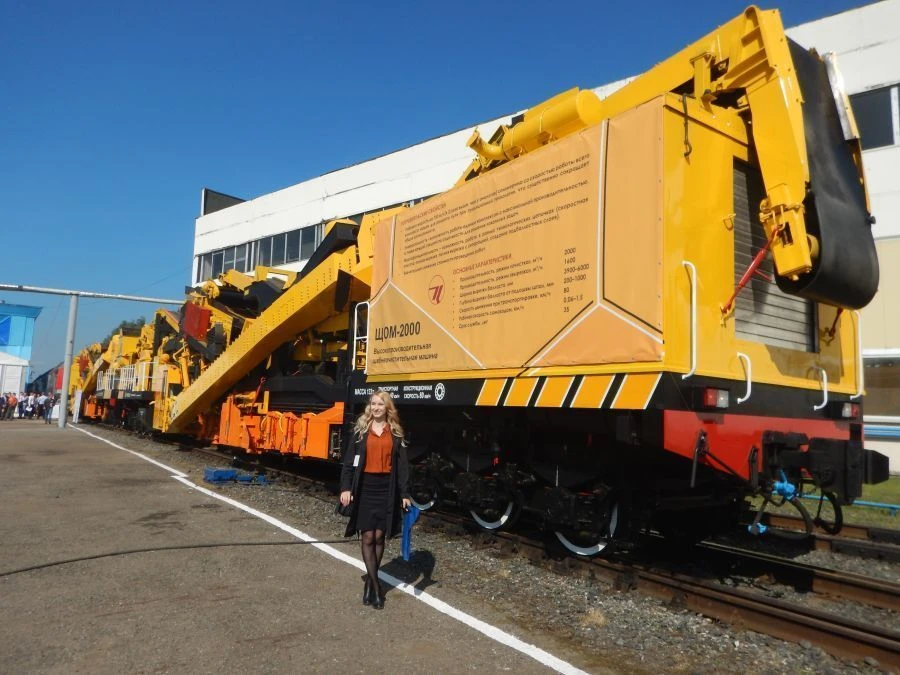

SHOM-2000 Gravel Cleaning Machine for Effective Railway Maintenance

Machine ShchOM-2000 is designed for deep cleaning and cutting out of crushed stone in the production of reinforced medium and major repairs of railway track. The main technical characteristics of the machine: 1.Capacity, m3/h - 2000 2.Type of stroke drive - Hydrostatic 3.Number of sections - 2 4.Depth of crushed stone cutting under the sleeper sole, mm. - 200 - 600 5.Cutting width, mm -3900-5200 6.Minimum curve radius, m <ul> <li>- in working mode - 300</li> <li>during transport - 190</li> </ul>7.Dimensions -Tpr 8.Maximum axial load, tonnes -25 9.Power of power units, kW -1200 10.Speed at transport in a train, km/h - 80 <ol> <li>Self-propelled travelling speed in two directions, km/h - 0.06 to 1.5</li> </ol>12.Crew, pers.

- 6 13.Machine length by couplers, mm - 58320 14.Weight,tonnes - 280 15.Maximum tractive effort, kN, not less - 400.
