Available for Import
Halogen-Free Flame-Retardant Power Cables for Safe Wiring Applications
Manufacturer:
INKATEX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Cables are intended for electrical wiring in office premises equipped with computer and microprocessor equipment, in kindergartens, schools, hospitals and for cable lines of entertainment complexes and sports facilities, as well as for cable lines of power supply and control circuits of electrical equipment of nuclear power plants (NP), outside the AS hermetic zone in the AS systems of classes 3, 4 according to NP-001-15. For armoured cable of PBPng(A)-P1P brand, armour of two galvanized steel tapes is applied over the inner sheath.
Specifications

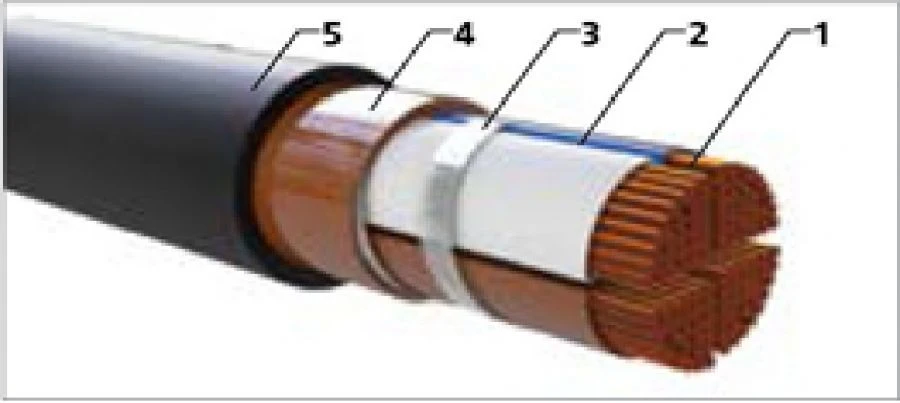

Core design
Conducting core - copper single or multi-conductor, round or sector shape, corresponds to class 1 or 2 according to GOST 22483.
Filling between insulated conductors
Inner sheath - of halogen-free polymer composition, applied with filling of gaps between insulated cores.
Type of sheathing and protective cover
Inner sheath - of halogen-free polymer composition, applied with filling of gaps between insulated cores.
Number of conductive cores
1...5 pcs
Nominal cross sections of conductor cores
6...240 mm²
Nominal voltage
66...1 kV
Conducting core material
Copper
Mark
PBPng(A)-HF
Core material
Copper
Core diameter
2...18 mm
Insulation material
Insulation - of halogen-free polymer composition.
Sheath material
The outer jacket is made of halogen-free polymer composition.
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
