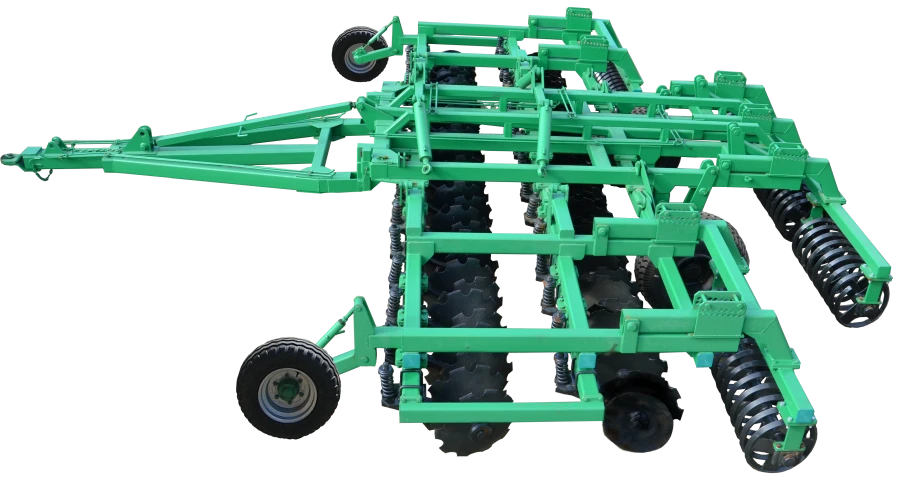

Heavy Disc Harrow BDK-9.0M for Efficient Soil Tillage and Preparation

Disc Harrows

Manufacturer: Petrovskoye RTP OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Heavy disc harrow BDK-8,0M

Description

Disc harrows of BDK "Diskokat" series, hereinafter referred to as the unit, with working elements of increased resource, with the mass per 1 disc, not less than 140 kg, is designed: for surface treatment of compacted soils, weed killing and shredding of plant residues after harvesting thick-stemmed row crops, loosening and preparation of soils, as well as for maintenance of meadows and pastures, for basic cultivation and preparation of soils for sowing in zero minimum, soil-protective and energy-saving technologies. Economical use of the harrow is provided by clad discs of increased resource, which surpass domestic analogues by total resource in 2-2,5 times, as well as by agrotechnical and energy (traction resistance, running stability, crumbling) indicators 11 - 23 %. Increased weight of the harrow (not less than 140 kg per 1 disc) in comparison with domestic analogues allows to achieve reduction of the number of soil tillage to a depth of up to 17 cm. for 1 pass, which in.....

Specifications

Type of product according to PP RF 616

Disc harrows

Capacity per hour

9...9.5

Harrow type

trailed, hydraulic

Distance between rows

1220 mm

Weight

10800 kg

Working width

9 m

Number of implement rows

2 pcs

Operating speed

Overall dimensions in transport position

7900x4350x4200

Overall dimensions in working position

7900x9350x2000

Coupled with tractors with a power of at least

450 hp

Soil ridging

4 cm

Ground clearance, not less

340 mm

Working depth in two passes

17 cm

Distance between disks

250 mm

Number of disks

660-35; 610-35; 500-2

Disk type

Spherical, cut-out

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
