High-Frequency Twisted Pair Cable 1pr F/UTPt-5e 24 AWG PE

Available for Import

High-Frequency Twisted Pair Cable 1pr F/UTPt-5e for Reliable Connectivity

Communication Cables and Wires

Manufacturer: TKZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

High-frequency paired twisted cable U/UTPt Cat 5e PE 10?2?0,52 Cable of high-frequency pair twisting KSVPPT-5e 25h2h0,48 High-frequency twisted pair cable 16pr U/UTP-5e 24 AWG PE Cable high-frequency paired twisted pair U/UTPt Cat 5e PE 2x2x0,52 Cable of high-frequency pair twisting KSVPPT-5e 16x2õ0,50

High-frequency twisted pair cable 2pr U/UTP-5e 24 AWG PE Cable high-frequency paired twisted pair U/UTPt Cat 5e PE 4x2x0,52 Cable of high-frequency pair twisting KSVPPT-5e 1x2õ0,48 High-frequency cable with paired twisting KSVPPT-5e 2x2x0,51 High frequency twisted pair cable 2pr U/UTPt-5e 25 AWG PE High frequency twisted pair cable 10pr U/UTP-5e 24 AWG PE Cable high-frequency paired twisted pair U/UTPt Cat 5e PE 16?2?0,52 High frequency twisted pair cable 8pr U/UTPt-5e 24 AWG PE Cable of high-frequency pair twisting KSVPPT-5e 10õ2õ0,50 Cable of high-frequency pair twisting KSVPPT-5e 10x2x0,48 Cable high-frequency paired twisted pair U/UTPt Cat 5e PE 25?2?0,52 High-frequency cable of paired twisting KSVPPT-5e 25x2õ0,51 High frequency twisted pair cable 8pr U/UTPt-5e 25 AWG PE High frequency twisted pair cable 25pr U/UTPt-5e 24 AWG PE High-frequency cable with paired twisting KSVPPT-5e 16h2h0,48 Cable of high-frequency pair twisting KSVPPT-5e 4x2õ0,51 Cable of high-frequency pair twisting KSVPPT-5e 8x2x0,48 Cable of high-frequency pair twisting KSVPPT-5e 1x2õ0,50 Cable of high-frequency paired twisting KSVPPT-5e 8õ2õ0,51 High-frequency cable with paired twisting KSVPPT-5e 25x2õ0,50 High frequency twisted pair cable 4pr U/UTPt-5e 25 AWG PE High frequency twisted pair cable 25pr U/UTPt-5e 25 AWG PE

Description

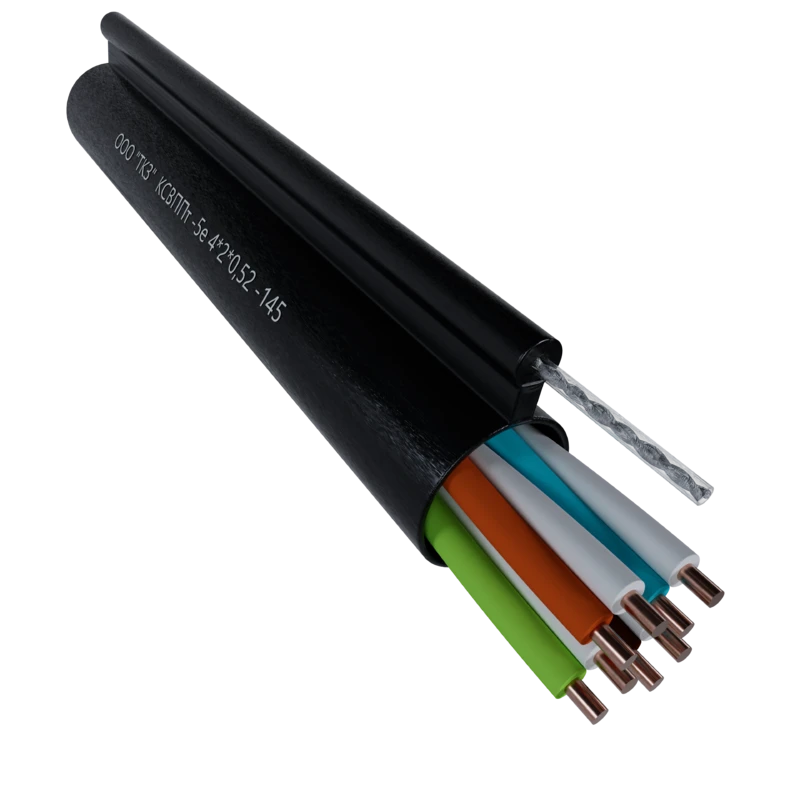

The cores are made of soft copper wire in polyethylene insulation, twisted in pairs with steps, not equal and not multiples of each other.Pairs are twisted in a core by unidirectional twisting.On top of the core there is a screen made of aluminopolymer tape with a contact conductor made of tinned copper wire 0,4 mm in diameter. On top of the screen there is a sheath made of light-stabilised polyethylene (HDPE), with an external load-bearing element twisted from seven galvanised steel wires, connected to the main cable by a jumper, resulting in a dumbbell-shaped structure. High-frequency twisted pair cable for structured cable systems, designed for horizontal and vertical external laying on the walls of buildings, suspension on overhead communication lines and pulling between supports or buildings, for operation in the frequency range up to 100 MHz (category 5 and 5e according to GOST R 54429-2011) and ISO / IEC11801.Cables are manufactured in climatic version UHL, placement category 1, 2 according to GOST15150..

Specifications

Wave impedance

100 ohm

Working capacity

5.6

Ohmic asymmetry of cores in a pair

2 %

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
