Available for Import

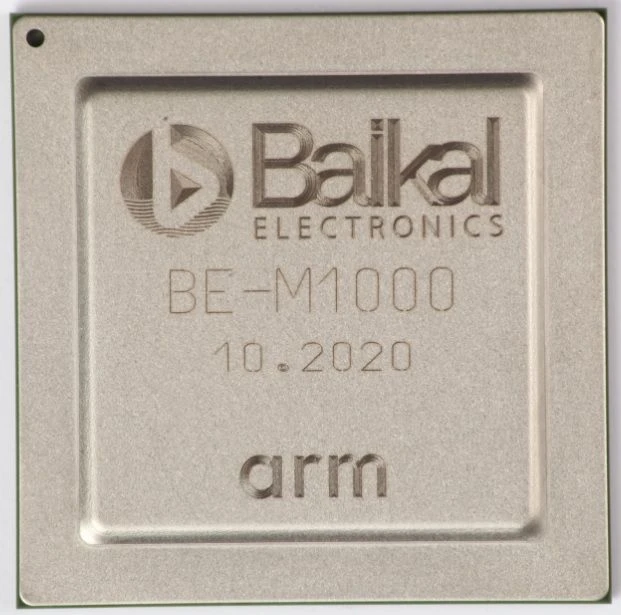

High-Performance Microprocessor BE-M1000 for Advanced Computing Applications

Electronic ICs

Manufacturer:BAIKAL ELECTRONICS OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

A domestic system-on-chip with 8 ARM Cortex-A57 cores, 8-core Mali-T628 GPU and a large set of high-speed interfaces. The state-of-the-art high-performance BE-M1000 Microprocessor is designed for a wide range of target devices in the consumer and B2B segments.
Advantages of the announced products include: domesticity, energy efficiency, support for domestic Linux-based software, and the availability of an ecosystem of software and hardware solutions

Specifications

Case

FCBGA-1521, 40x40 mm, 1521 pins, 1 mm pin pitch

Technology

CMOS, 28 nm

Operating frequency

1500

Designation

BE-M1000

Processor clusters based on Armv8-A architecture

Eight Arm Cortex-A57 cores up to 1.5 GHz

GPU

Arm Mali-T628 with 8 shader cores (two quad-core clusters) up to 750 MHz

L3 level cache of coherent system bus

RAM subsystem

Two 64-bit DRAM DDR4-2400/DDR3-1600 interfaces with error correction support (ECC)

Power consumption

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording W

High-speed interfaces

Three PCIe Gen3 subsystems: one PCIe x8 and two PCIe x4; Two USB 3.0 and four USB 2.0 interfaces; Two SATA 6G subsystems; Two 10 Gb Ethernet interfaces (10GBASE-KX4/10GBASE-KR); Two 1 Gb Ethernet controllers (RGMII); eMMC/SD/SDIO interface.

Low-speed interfaces

GPIO: 32 lines; Two UART ports; One SPI port; One eSPI port; Two I2C ports; Two SMBus ports

Multimedia

LVDS video controller; HDMI 2.0 video controller; HD video decoder; One I 2S port

Safety

Support Arm TrustZone; Two TrustZone controllers; Hardware support for trusted boot

System monitoring and debugging

Five PVT sensors; Arm CoreSight™ Debug and Trace System

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
