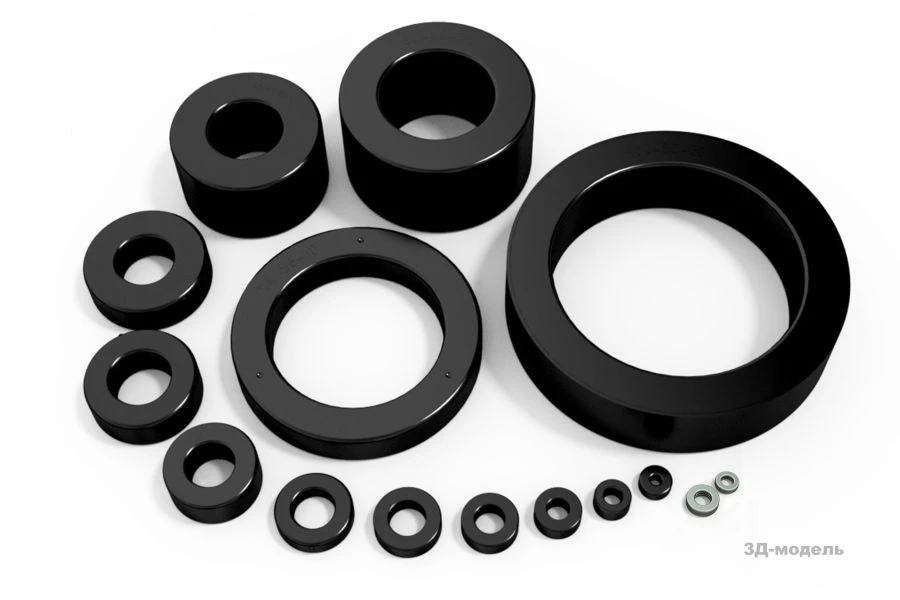

High Permeability Nanocrystalline Magnetic Cores MSFN for Precision Electronics Applications

Specialised Electronic Parts

Manufacturer:PJSC "MSTATOR"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Magnetic conductors MSFN are designed for use as magnetic system of in-phase filter chokes, measuring current transformers, including for accurate electronic electricity meters, protective cut-off devices, etc. Frequency range in power mode up to 1 MHz, in signal mode up to 400 MHz. Quality category "OTK".

Specifications

Operating temperature range

-60 - 155 [0*]?

Inductance factor (100 kHz)

+40/-25%, Gn/spin 3.8 to 46 (10^-6)

Inductance factor ( 10 kHz, 2 V)

+40/-25%, Gn/fibre from 11 to 135 (10^-6)

Size range

From 7-3.5-3.8 to 130-100-30
