Available for Import
Hydraulic Cylinder CG-80 50x245 for Efficient Industrial Applications
Bulk pricing available
FOB, CIF & EXW terms available
Description

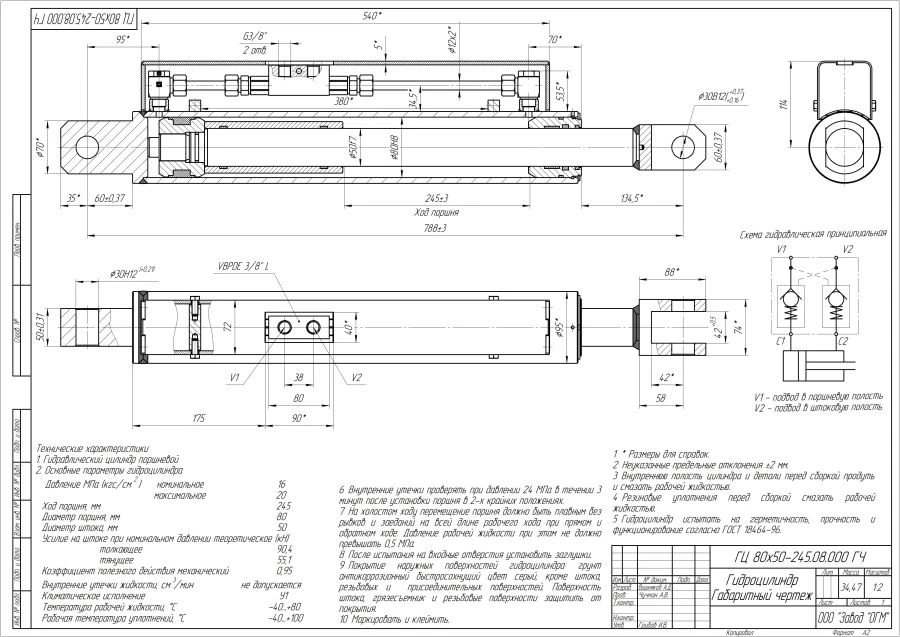

Technical characteristics 1. Hydraulic cylinder piston 2. Main parameters of the hydraulic cylinder Pressure MPa (kgf/cm )nominal 16 maximum 20 Stroke of the piston, mm 245 Diameter of the piston, mm 80 Diameter of the rod, mm 50 Force on the rod at nominal pressure theoretical (kN) pushing 90,4 pulling 55, Coefficient of efficiency mechanical 0,95 Internal leakage of liquid, cm/min is not allowed Climatic design U1 Temperature of the working fluid, C -40.
...+80 Working temperature of seals, C -40.......+80 Working temperature of seals,? -40...+100.
Specifications
Share your requirements for a quick response!
Delivery & Payment
Shipping Terms
Delivery Time
Payment Methods
