Hydraulic Damper for Suspension System UGD 390/4700/4700/002 Available for Import

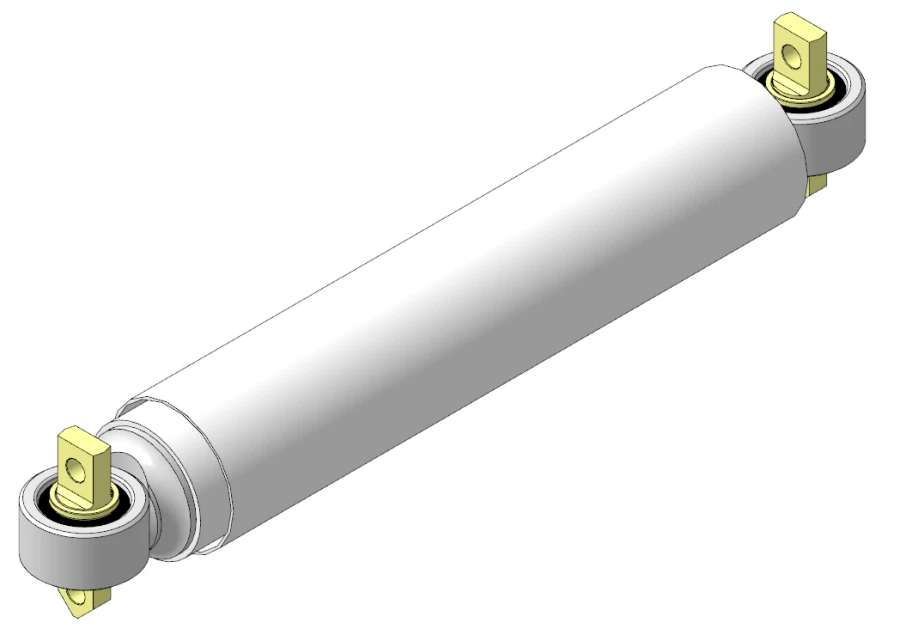

Hydraulic Damper UGD 390/4700/4700/002 for Suspension Systems

Railway Vehicle Parts
Manufacturer: OKVEY LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Hydraulic dampers are designed for installation on rolling stock in the bogie spring suspension system in order to ensure standardised indicators of smooth running and impact on the railway track.

Specifications

Type of product according to PP RF 616
Locomotives
Dimension between trunnion centers in compressed position
640 mm
Dimension between trunnion centers in tensile position
1030 mm
Dimension between holes in trunnions for mounting bolts
96 mm
Diameter of the hole in the trunnion for the mounting bolts
17 mm
Outer diameter of the casing
112 mm
Total weight, not less
21.1 kg
Full piston stroke
390 mm
Outer diameter of the housing
100 mm
