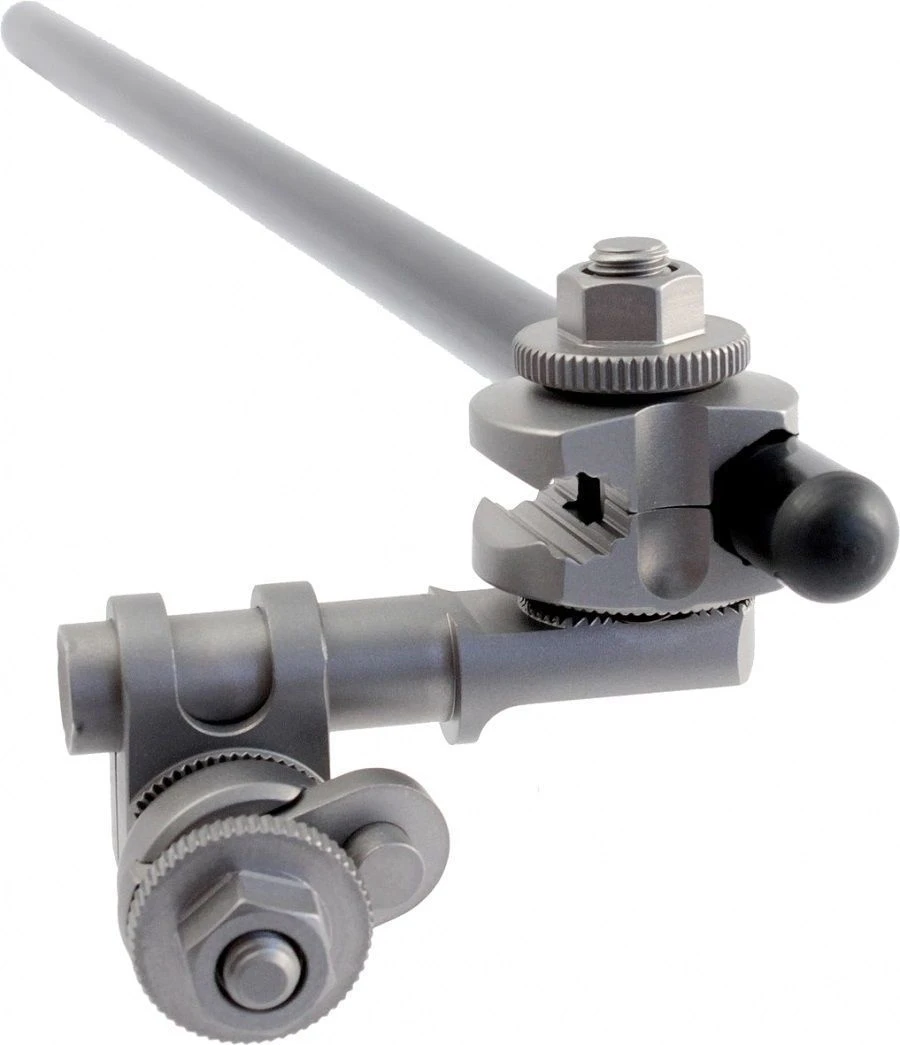

Ilizarov Ring Adapter "11/8" for Hybrid External Fixation Systems

Non-sterile product designed to attach the support tube to the Ilizarov KDA ring in hybrid external fixation systems. All parts of the adapter to the Ilizarov ring are made of titanium alloys. The adapter is not disassembled and has a bearing axis.

On one side there is a shoe with a 2-sided open-type clamp. This shoe has spoon-shaped recesses on both outer sides, and the inner spoons for the support tubes have an anti-slip coating. All clamping and clamping units are spring loaded, the locking nut has a travel stop and will not fall out.

The overall adjustment of the mutual location of the system "support tube - adapter - Ilizarov ring" is made in 3 planes. The adapter to the Ilizarov ring has a marking of the diameters to be clamped, individual labelling and packaging. This product should be sterilised before use.

Suitable for hybrid ANFs. For Ø8 and 11mm tubing.
