Available for Import

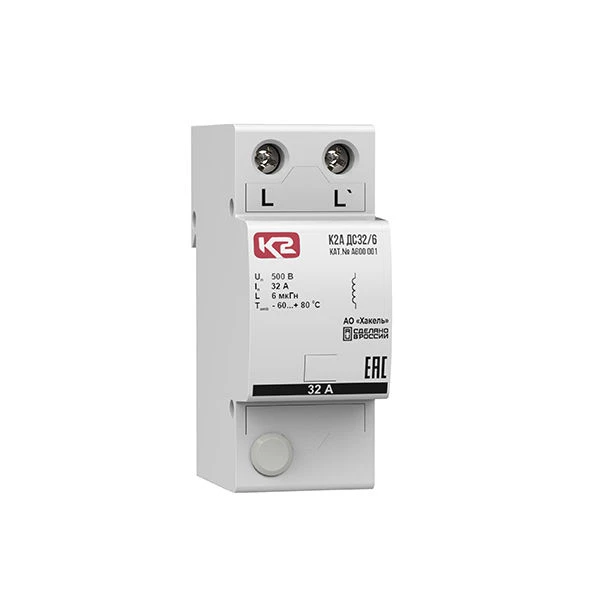

Impulse Separation Choke K2A DS32/6 for Effective Surge Protection
Manufacturer:
HAKEL OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The K2A DS32/6 pulse isolating choke is designed to coordinate the operation of Class I and Class II ultrasonic devices (or Class II and Class III ultrasonic devices) based on varistors when the distance between them on the power supply cable is less than 10 metres.
Specifications
Current type
DC/variable, 50 Hz
Rated current
32 A
Weight
157 year
Inductance
6 µHn
Overall dimensions (HxWxH), mm
92x36x66
Rated mains voltage
500 V
Operating temperature
-60...80 °C
Mounting
DIN rail 35 mm
