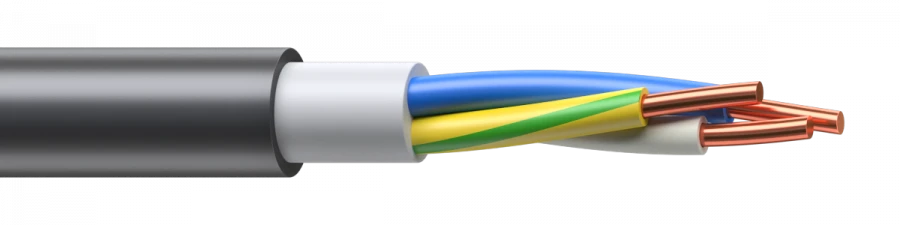

Low Fire Hazard Power Cables VVGng(A)-LS for Safe Electrical Installations
Manufacturer:
Podolsk Cable OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Seal cables with copper conductors, with insulation and with sheaths or protective hose made of polyvinylchloride plasticate of reduced fire hazard, including with a common screen under the sheath, including with armour made of galvanized steel tapes, designed for transmission and distribution of electrical energy and electrical signals in stationary installations for rated alternating voltage of 660 and 1000 V at a frequency of 50 Hz or at a constant voltage of 1000 and 1500 V respectively.
Service life is not less than 30 years at operation in the temperature range from minus 50 to +50°C..
Service life is not less than 30 years at operation in the temperature range from minus 50 to +50°C..
Specifications
Insulation material
PVC plasticate of reduced fire hazard
Twisting
insulated conductors are twisted
Inner shell
PVC plasticate of reduced fire hazard
Outer shell
PVC plasticate with reduced flammability
Fire hazard class
according to GOST 31565: P1b.8.2.2.2.2.
Climatic version
UHL and T placement categories 1-5 according to GOST 15150
Nominal voltage
nominal alternating voltage 0.66 and 1 kV with nominal frequency 50 Hz
Application
The cables are designed for operation in cable constructions and premises, including for nuclear power facilities in nuclear power plant systems outside the germozone of classes 3 and 4 according to NP-001 classification.
Core material
copper, single or multi-wire
Nominal core cross-section
1.5...95 mm²
Number of cores
5
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
