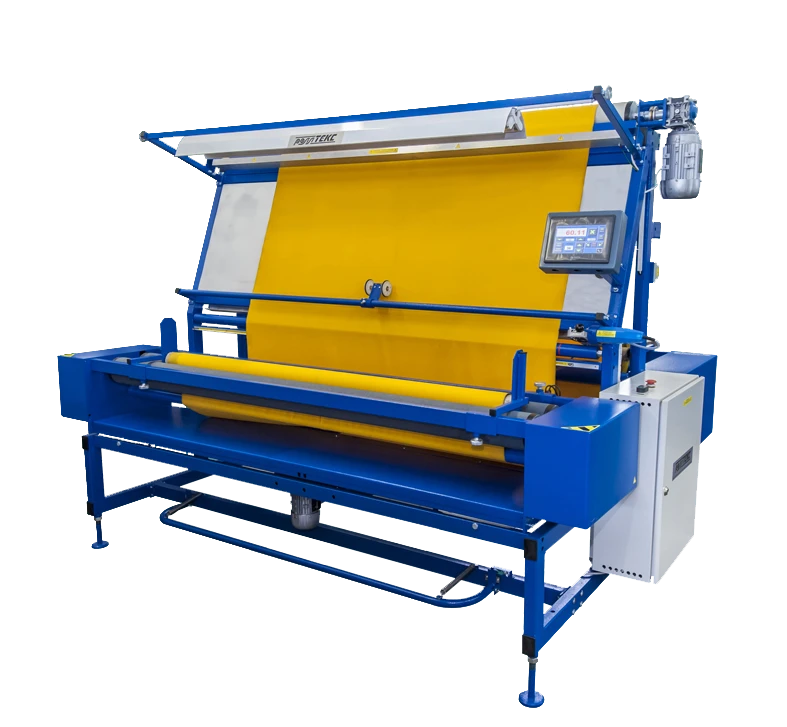

Measuring and Defect Inspection Machine B02.4 for Elastic and Non-Elastic Materials

Available for Import

Measuring and Defect Inspection Machine B02.4 for Quality Control of Fabrics

Textile Processing Equipment

Manufacturer: ROLLTEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The measuring and rejecting machine model B02.4 is designed for rewinding, length measurement and quality control of inelastic and elastic materials, including knitted fabrics. The machine provides rewinding of material rolls with diameter up to 400 mm and weight up to 60 kg. Available in roll widths from 1800 mm/ up to 2000 mm/ up to 2500 mm/ up to 3200/ up to 3500 mm. Standard equipped with roll edge levelling system, double material stretch tracking system, electronic programmable metre counter, forward and reverse stroke with twisting into a roll, viewing screen with LED backlight, roll end sensor, etc. The machine can be additionally equipped with additional overhead lighting, device for static removal, density adjustment of the winding of the bale, cutting manual or automatic knife, ruler for visual measurement of the width of the material, Astra software for the accounting of scrapped materials, weighing system of the winding bale, adjustment of the....

Specifications

Mark

Rolltex

Maximum bale diameter

400 mm

Maximum bale weight

60 kg

Electronic programmable counter for material length measurement

The electronic meter meter allows you to: use conversion factors that allow you to increase the accuracy of measuring materials of different densities and stretching; - non-volatile power supply of the meter ensures the preservation of the worked

Automatic material stretch tracking system

Double material stretch control function, provides rewinding and metre measurement of delicate materials and knitted fabrics.

Automatic bale edge equalization system

function ensures that the edge of the material roll is aligned to the base side (except for curled edge webs).

View screen

Viewing screen is equipped with LED backlight. viewing screen height is 560 mm. viewing screen tilt angle is 70º.

Touch screen rotary operator panel

the machine is controlled from the operator's touch panel, which is designed in Russian.

Foot-operated rear and front foot controls

The foot pedal is necessary for easy filling of the machine. the rear pedal switches on the drives of the unwinding rollers. the front pedal is used for switching on and off the drives in the machine in case of defects or other technological reasons.

Rewinding scheme

from a cylindrical roll wound on a cardboard bobbin into a cylindrical roll wound on a cardboard bobbin with an outer diameter of at least 40 mm.

Reverse (Reverse)

The backstroke function is used for rewinding back the material in case of a missed/clarified defect or if the residual material has been rewound into a roll.

Machine stop sensor at the end of the bale

the bale end sensor is necessary to increase the measuring accuracy. upon opening the bale end sensor, the machine resets the rewind speed to 5 m/min and the operator finishes the rewind at a low rewind speed.

Additional unwinding axis for handling non-cylindrical bales on the cardboard bobbin inside

The axle is necessary for working with non-cylindrical bales on the bobbin. when using the "axle rewind" function, the machine automatically switches off the drive of the unwinding rollers in order to save energy consumption.

Overall dimensions (length x width), mm for machine with bale width up to 1800 mm

1600x2500

Maximum electrical power consumed by the machine

7 kW

Mains power supply

220 V

Passport, operating and maintenance instructions

supplied with equipment

Maximum material width

1800 mm

Rewind speed

Rewind speed is infinitely variable from 0 to 50 m/min.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
