Metal Storage Cabinet for Control Bullets and Cartridges - Secure Storage Solution

Metal Storage Cabinets

Manufacturer: KMK ZAVOD LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

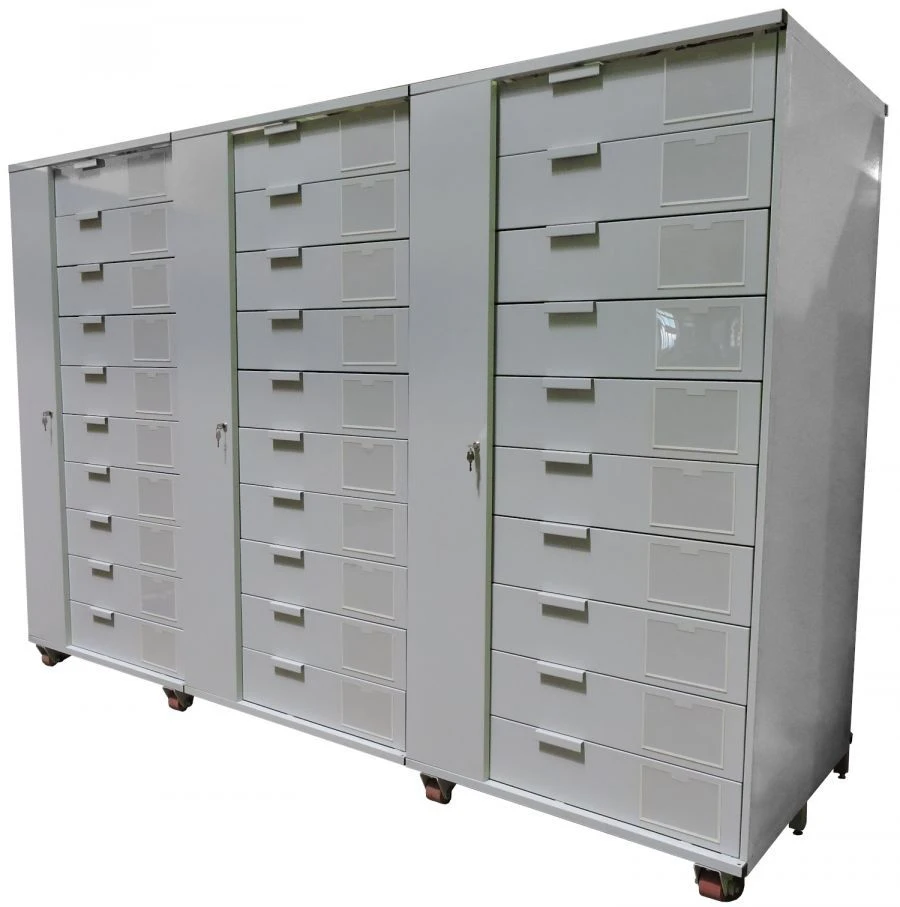

Designed for storing ammunition, keeping records of control bullets and cartridge cases. It can be used at arsenals, bases and ammunition depots. It consists of 3 prefabricated sections.

It is a double-sided cabinet. The sections are assembled to each other width-wise by means of bolts and nuts. Each section is equipped with 20 drawers (10 on each side).

Each drawer has an internal divider dividing it into 50 95x100 mm cells. The drawers are equipped with a handle in the centre of the front panel. The section is equipped with 2 legs with screw supports for height adjustment and two wheel supports for moving.

The drawers are secured against opening by metal door plates equipped with a transom lock, lugs for a padlock and a flag-type sealing device. The box is equipped with a pocket made of plexiglass at least 190 mm wide and 150 mm high.

Specifications

Type of product according to PP RF 616

Metal cabinets other

Color

RAL7035 (light grey)

Depth

1060 mm

Width

3244 mm

Frame type

metal

Material

Steel

Weight

1230 kg

Assignment

Storage of ammunition, keeping records of control bullets and cartridge cases after firing of small arms

Section width

1080 mm

Drawer width

1018 mm

Drawer depth

504 mm

Drawer height

150 mm

Height of drawer front panel not less than

200 mm

Height of section feet and wheel supports

100 mm

Width of drawer handle for opening at least

150 mm

Width of metal cover-door not less than

250 mm

Maximum distributed load per drawer no more than

SBVVBG kg

Frame material

Steel profile pipe GOST 8645-68 40x20mm with 2mm wall thickness, 40x40mm with 2.5mm wall thickness and 30x30mm with 1.5mm wall thickness.

Drawer material

Cold-rolled carbon steel sheets of ordinary quality according to GOST 16523-97 with thickness of 1,0 mm

Material for side panels, lid and door cover.

Cold-rolled carbon steel sheet of ordinary quality according to GOST 16523-97 with thickness 0.7 mm

Material of inner partitions of drawers

Steel thin sheet galvanised from continuous lines according to GOST 14918-80 with thickness not more than 0,5 mm

Coverage type

Powder paint

Packaging

Stretch film and corrugated cardboard tare cover

Warranty period of operation

24 months from date of sale

Product life

10 years

Height (with supports and legs)

2204

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
