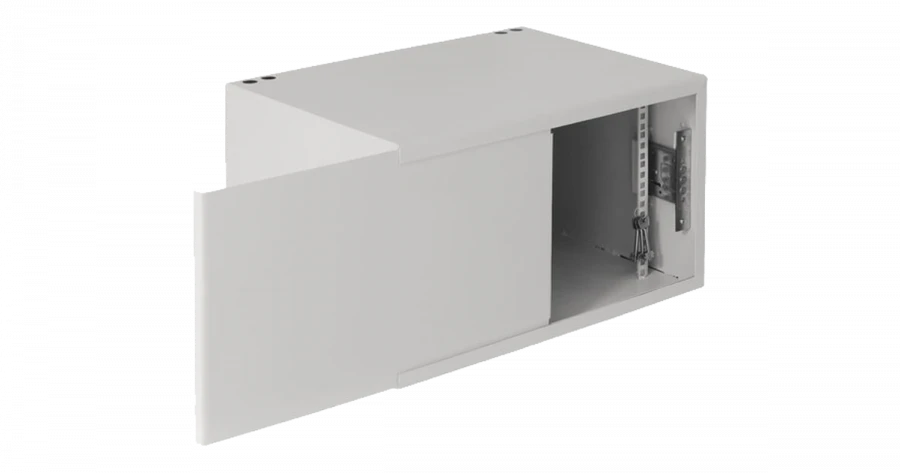

NETLAN EC-WP Series Telecommunications Cabinet for Secure Installations

Metal Storage Cabinets

Manufacturer:TLK LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Antivandal cabinets NETLAN combine high quality and attractive cost. Designed for installation in entrances, attics, technical and other rooms and areas without access control, protect equipment from unauthorised entry and burglary. The cabinets provide normal temperature and humidity conditions, with protection degree IP20 (protection against particles > 12.5 mm).

The maximum permissible distributed load on the cabinet is 100 kg. The cabinet is powder-coated, impact-resistant, polymer-epoxy, light grey (RAL 7035). Other colours of coating are possible on individual order.

Specifications

Depth

400 mm

Type of product according to PP RF 616

Metal cabinets other

Type of accommodation

Wall-mounted

Maximum distributed load

100 kg

Height, U

Frame type

welded

Height

320 mm

Width

520 mm

Color

light gray (RAL 7035)

Assignment

Telecommunication wall cabinet

Weight

17 kg

Material

Cold-rolled steel

Degree of protection

IP20

Type of floor support

Availability of fasteners to the support (pole)

Type of front door(s)

All-metal sliding door

Type of rear door(s)

Blind wall. With filling: metal.

Usable depth

390 mm

Type of side panels

All-metal fixed cabins

Type of door lock

3-bolt lock

Front door material

Cold-rolled steel 1.5 mm

Rear door material

Cold-rolled steel 1.5 mm

Side panel material

Cold-rolled steel 1.5 mm

Frame material

Cold-rolled steel 1.5 mm

Material of mounting profiles

Cold-rolled steel 1.5 mm

Type of coloring

Powder-coated, impact-resistant, polymer-epoxy coating

Glass

Wall-mounted swivel section

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
