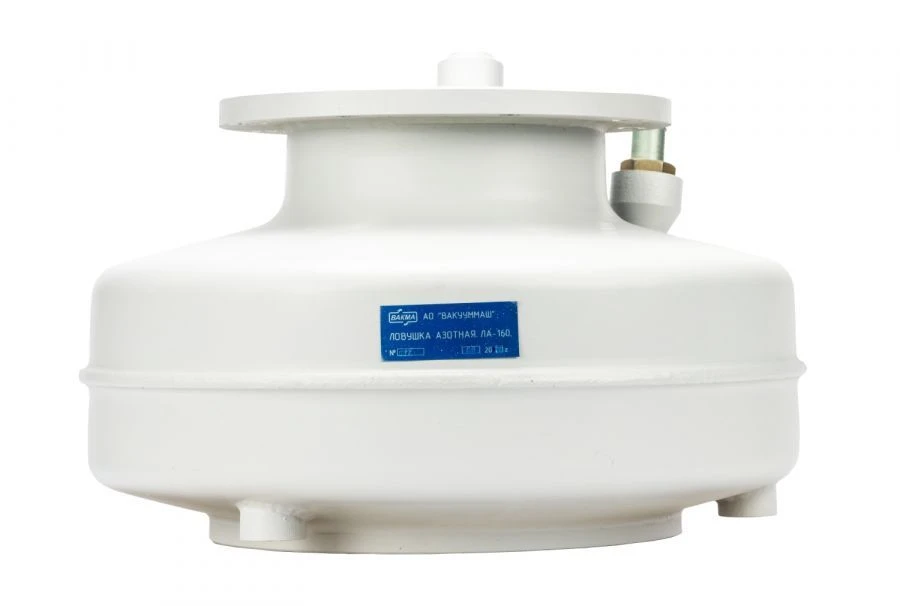

Nitrogen Fill Vacuum Trap LA-160 for Effective Vapor Condensation

Vacuum Pump Parts

Manufacturer:VACUUMASH OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Nitrogen pouring trap LA-160 is installed on the inlet flange of the diffusion pump and is designed to reduce the flow of working liquid vapours into the pumped volume by condensing them on the elements of the freezing device cooled with liquid nitrogen.

Specifications

Liquid nitrogen flow rate at pressure 6.6x10-3 Pa, l/h, no more than

0,8 l/h

Volume of the freezing device for liquid nitrogen, l, not less than

3.5 l

Oil vapor flight at pressure 1.3x10 -2 Pa, g/h, not more than

2.0x10 -5 g/h.

Weight without plugs and parts of their fastening, kg, not more

17 kg

Weight including plugs and parts of their fastening, kg, not more

22 kg
