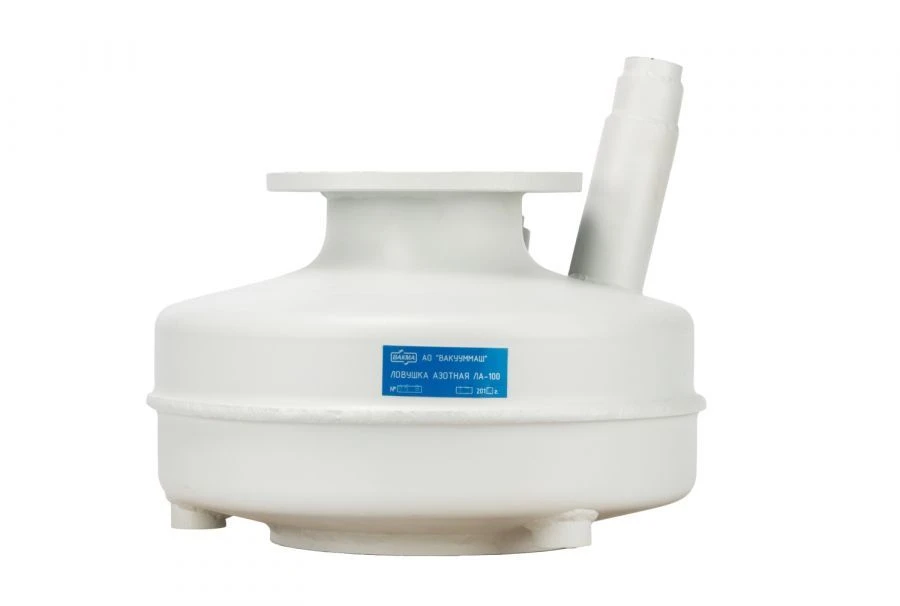

Nitrogen Vacuum Trap LA-100 for Effective Vapor Flow Reduction

Vacuum Pump Parts

Manufacturer:VACUUMASH OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

A nitrogen pouring trap LA-100 is installed on the inlet flange of the diffusion pump and is designed to reduce the flow of working fluid vapours into the pumped volume by condensing them on the elements of the freezing device cooled with liquid nitrogen.

Specifications

Weight including plugs and parts of their fastening, kg, not more

14.5 kg

Conductivity at a pressure of 1.3x10 -2 Pa, l/s , not less than

370 l/s

Liquid nitrogen flow rate at pressure 6.6x10-3 Pa, l/h, no more than

0.8 l/h

Volume of the freezing device for liquid nitrogen, l, not less than

2.6 l

Oil vapor flight at pressure 1.3x10 -2 Pa, g/h, not more than

8,0x10 -6 g/h

Weight without plugs and parts of their fastening, kg, not more

B1/B8 2100/900 MHz kg
