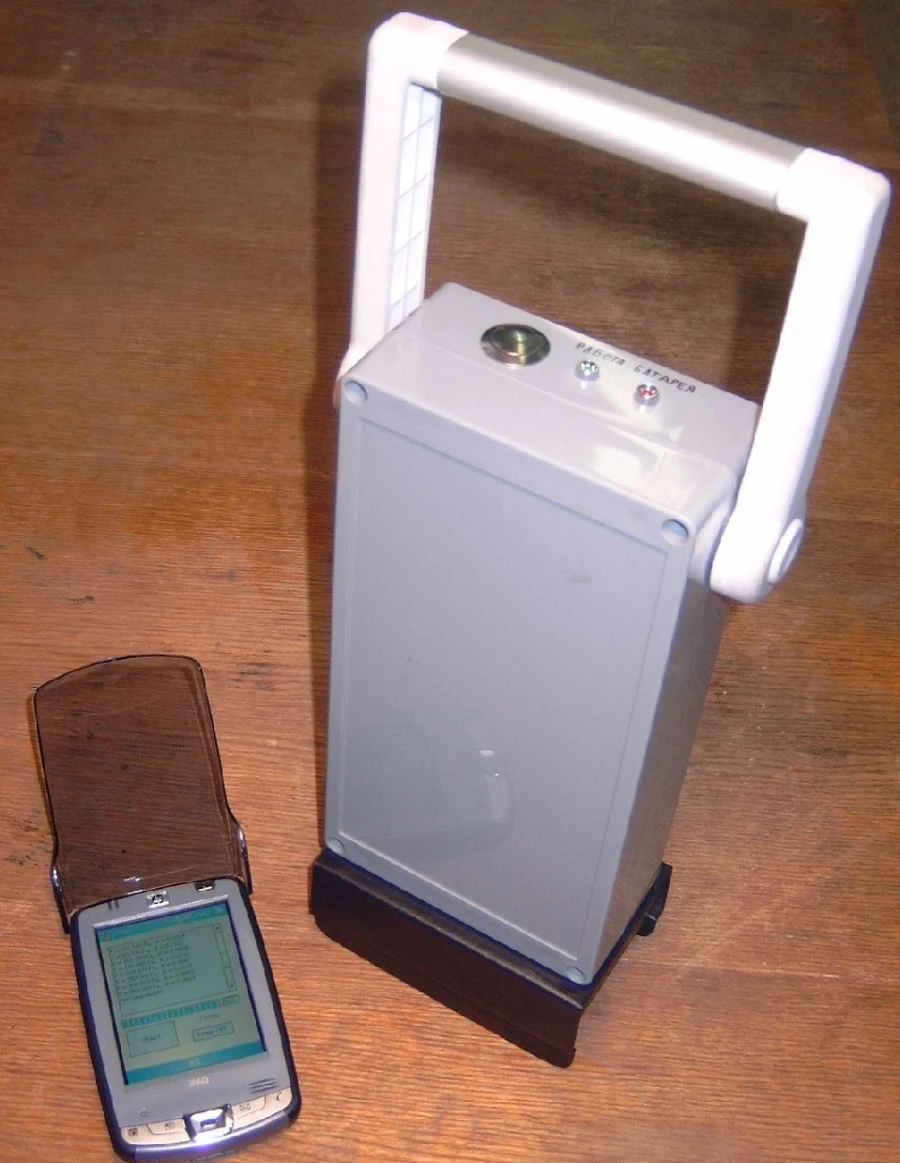

Non-contact Electric Parameter Measurement Device PC-ARS-07 for Rail Circuits

The ARS-07 control device (hereinafter, PC-ARS-07 (automatic speed control device)). PC-ARS-07 is designed to measure electrical parameters of rail circuits by non-contact method, directly on the rail line. Before commissioning PC-ARS-07 is subject to calibration in the laboratory of the metrological service of the metropolitan.

PK-ARS-07 is constantly being improved. PK-ARS-07 is designed for operation in tunnels and open sections of the metro track. In terms of its functional characteristics PC-ARS-07 replaces the ARS B18-001 device, which is in operation in the metro.

Operating temperature of ambient air from -100C to +500C. Relative air humidity up to 95% at 350C and lower temperatures without condensation. In terms of resistance to mechanical effects occurring during operation, the product corresponds to group MS2 according to OST 32.146-2000.

The housing of the measuring unit PC-ARS-07 (hereinafter referred to as BI) provides protection against penetration of dust and c...
