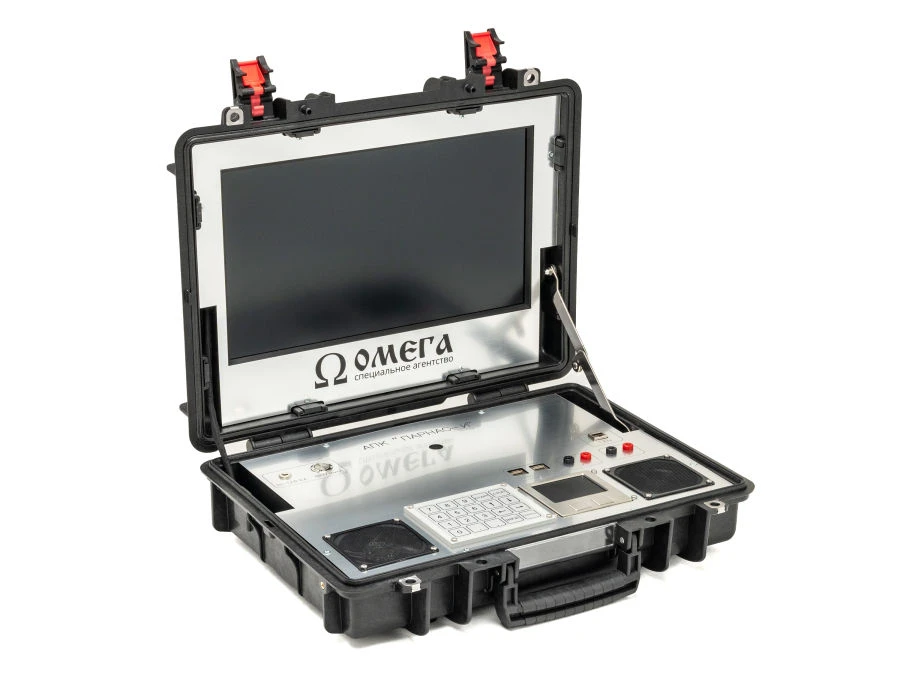

Parnass-I Software and Hardware Complex for Signal Generation and Equipment Testing

Electrical Measurement Systems

Manufacturer: OMEGA OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

APK "Parnas-I" is a multifunctional controlled signal simulator and is designed for testing of search equipment, training of specialists involved in the work to identify in technical means and premises, possibly introduced EUNPI, as well as conducting special studies on PEMIN technical means.The product imitates:- LF signals generated in the power supply circuits of HF receivers of modulated electromagnetic oscillations, including remote control receivers;- LF signals generated in the power supply circuits of AEP;- Signals generated in conductive communications as a result of exposure to them by third-party sources of harmonic HF oscillations;- Signals generated in the infrared spectrum;- Signals generated in the radio air:a) as a result of exposure of the product to third-party sources of harmonic RF oscillations;b) during operation of wireless access means of the selected standard;c) as a result of operation of harmonic RF sources of modulated electromagnetic oscillations.

Specifications

FM deviation tuning step

FM deviation setting range

50...500

AM depth tuning step

1 %

AM depth setting range

10...100 %

Types of modulation of transmitted signal

AM, FM

Transmitter centre frequency setting range

70...6000

Bluetooth restart time setting range

1...500

Wireless Access Media Standards

Bluetooth 2.1, Bluetooth 4.0, Wi-Fi 802.11n (in Wi-Fi hotspot mode)

Amplitude of modulating signal in the IR power supply circuit (connector "X2")

1 to 25 mV

Radiation source power

4, 20, 30, 60 mW

Type of radiation modulation

Radiation wavelength range

From 840 to 960 nm

Number of radiation sources

4 pcs

Minimum adjustable modulation index, max**

~1?10-8

Maximum adjustable modulation index, not less**

~1?10-3

Bandwidth tuning step

SBVVBG

Bandwidth setting range

200...4000

Modulation type

Center frequency tuning step

100

Center frequency setting range

70...400

Minimum adjustable modulation index**

~1?10-8

Maximum adjustable modulation index**

~1?10-3

Center frequency setting range

70...6000

Signal level setting range of the power supply circuit***

10 to 50 dB/µV

Frequency range

175...11025

Simulated signal input power supply circuits

USB, X1

Frequency range of received modulating (information) signal

100...15000

Types of modulations of the received signal

AM, FM

Receiver centre frequency setting range

70...6000

Signal level setting range of the power supply circuit***

10 to 500 µV

Signal level***

-135 to -90 dBm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
