R50 Type Switch Mechanism for 750mm Gauge Railways Model 1/9 Available for Import

R50 Type Switch Mechanism for 750mm Gauge Railways - Efficient Track Switching

Wide Gauge Track Switches
Manufacturer: NSZ OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

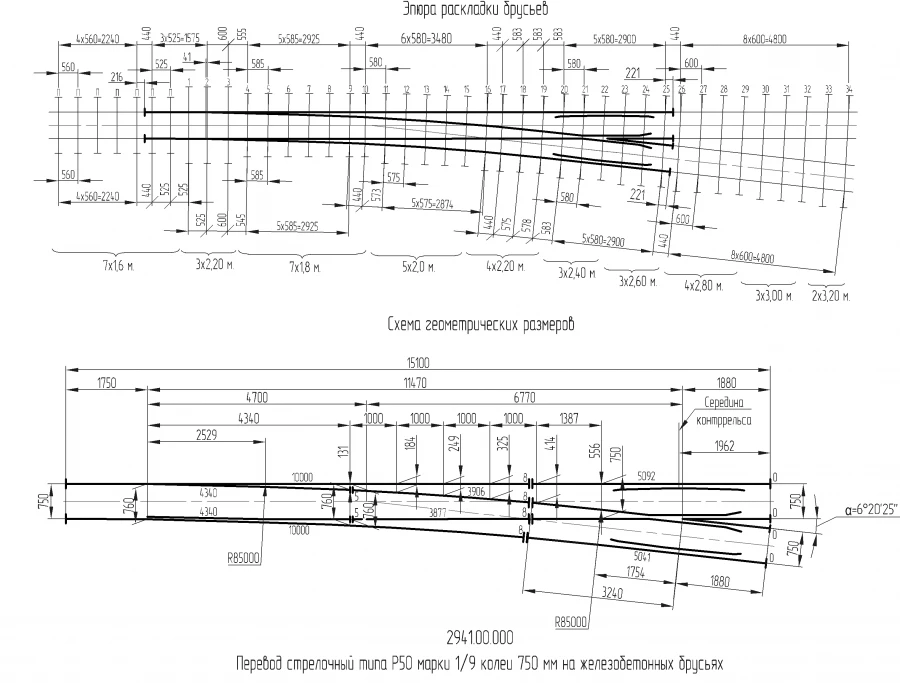

750 mm gauge 1/9 P50 type switches on reinforced concrete bars of the project 2941.00.000-53

Description

Designed for the transfer of rolling stock from one track to another. It is used on railway lines of narrow gauge 750 mm. Design features: transfer: separate fastening; on widened pads with flanges; screw fastening; terminals type PC; switches: pads with pads on a welded joint; rotary shackle with liner and pad root fastening, elastic U-shaped spring terminals; crossbars: prefabricated cross bracket with rail whiskers and cast core made of high manganese steel with liner-lap end of the rear outreach on pads with flanges; counter-rail made of SP850 corner

Specifications

Cross type by angle
Spicy
View
Single
Type of single transfer
Ordinary
Arrow design
With rotating sharps
Cross brand
1/9
Rail type
?50
View in the direction of a side or crossing track
Left
Cross type by construction
Team
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of timber
Reinforced concrete
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
