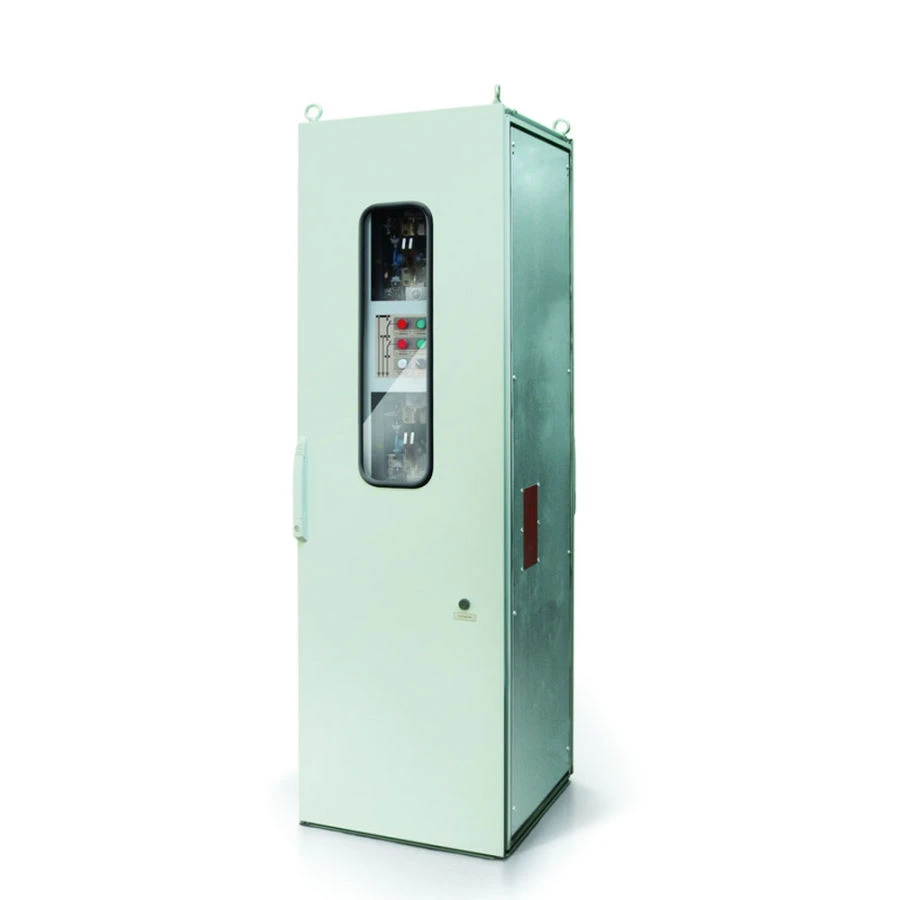

Remote-Controlled Motorized Disconnect Switch Cabinet SHU-600/1000 for DC Power Supply Systems
Manufacturer:
ENERGIYA OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Cable switching cabinet SHUM-600/1000, controlled remotely, with motor drives, is designed to work in the DC (+)600V power supply system of high-speed tram lines. It is used for redundancy of supply cables, disconnection and supply of 600V DC voltage to the contact network of high-speed tramway lines.
Specifications
Types of modifications
???-600/1000/2
Number of disconnectors in each modification
2 pcs
Rated voltage of DC power circuits
600 V
Rated current of power circuits
1000 A
Maximum cross-section of cables to be connected, sq.mm
1x800
Type of disconnectors
R-15-1250M1
Rated current of disconnectors
1250 A
Disconnector drive
Motorised with manual override option
Drive supply voltage (DC)
220 V
Electrical power of the drive
Flat grinder, Specialised grinder W
Total switch-on/off time of the disconnector
3
Rated voltage of control, signalling and lighting circuits (alternating current)
220 V
Test voltage between power circuits, enclosure housing and control circuits, not less, kV
5
Width
600 mm
Height
2000 mm
Depth
600 mm
Width
1200 mm
Weight of SHUM-600/1000/2, not more
200 kg
Weight of Shum-600/1000/4, not more
400 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
