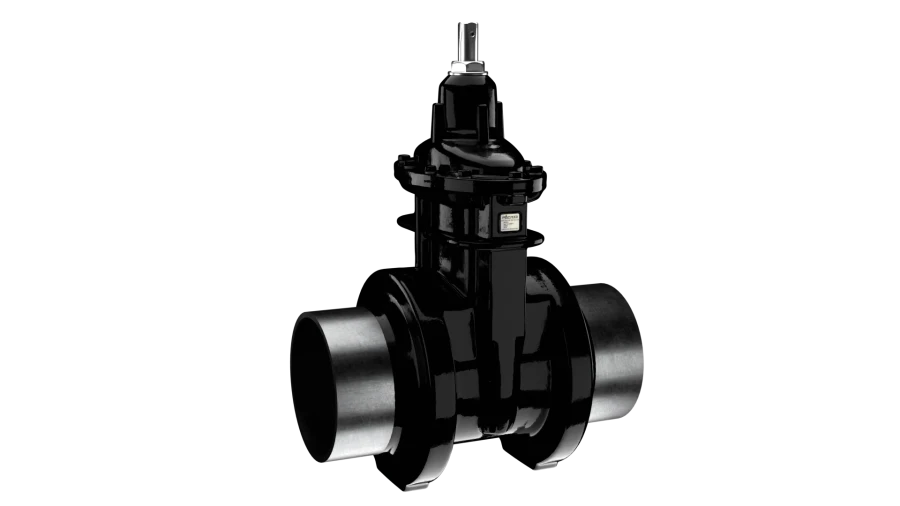

Rubber-Coated Wedge Valve for Gas Supply 31VCh24R

Available for Import

Rubber-Coated Wedge Valve for Gas Supply - Applications and Specifications

Gate Valves

Manufacturer:RSG GROUP LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Rubberised wedge gate valve for gas supply 31vch24r with reinforced type coating, with steel spigots, rated pressure Rubberised wedge gate valve for gas supply 31vch24r with reinforced type coating, with steel spigots, rated pressure Rubberised wedge gate valve for gas supply 31vch24r with reinforced type coating, with steel spigots, rated pressure Rubberised wedge gate valve for gas supply 31vch24r with reinforced type coating, with steel spigots, rated pressure Rubberised wedge gate valve for gas supply 31vch24r with reinforced type coating, with steel spigots, rated pressure

Description

Gate valve with rubberised wedge ROSGAZ (ZOK "ROSGAZ"), designed to shut off the flow of natural gas transported through gas distribution networks and gas consumption.Body -VChSHG (VCh-40). Cover: HSSG (HCH-40).Wedge: HSSG, vulcanised with butadiene nitrile rubber.Cover screws: stainless steel.Polyethylene spigots: PE100 SDR11.Spindle: stainless steel.Spindle nut: brass.Spindle sealing design - 5 o-rings form a labyrinth sealing system of the spindle. Sealing of movable and fixed connections of the gate valve - O-rings, profile gaskets Connection to the pipeline - polyethylene spigots Sealing class "A".

Specifications

Type of product according to PP RF 616

Shut-off valves for process control (gate valves, cocks, stop valves, disk gates and other fittings)

Nominal diameter (DN)

400 mm

Nominal pressure (PN), MPa (kgf/cm)

1,6 (16,0)

Type of seal in the gate

Elastic seal

Type of connection to the pipeline

Welded

Type of sealing of moving parts against the external environment

Glands

Hull molding type

Combined

Gate valve type

Wedge

Material of construction of the locking mechanism

Cast iron

Spindle type

Non-retractable

Type of execution

Standard (for controlling a standard telescopic rod / handwheel)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
