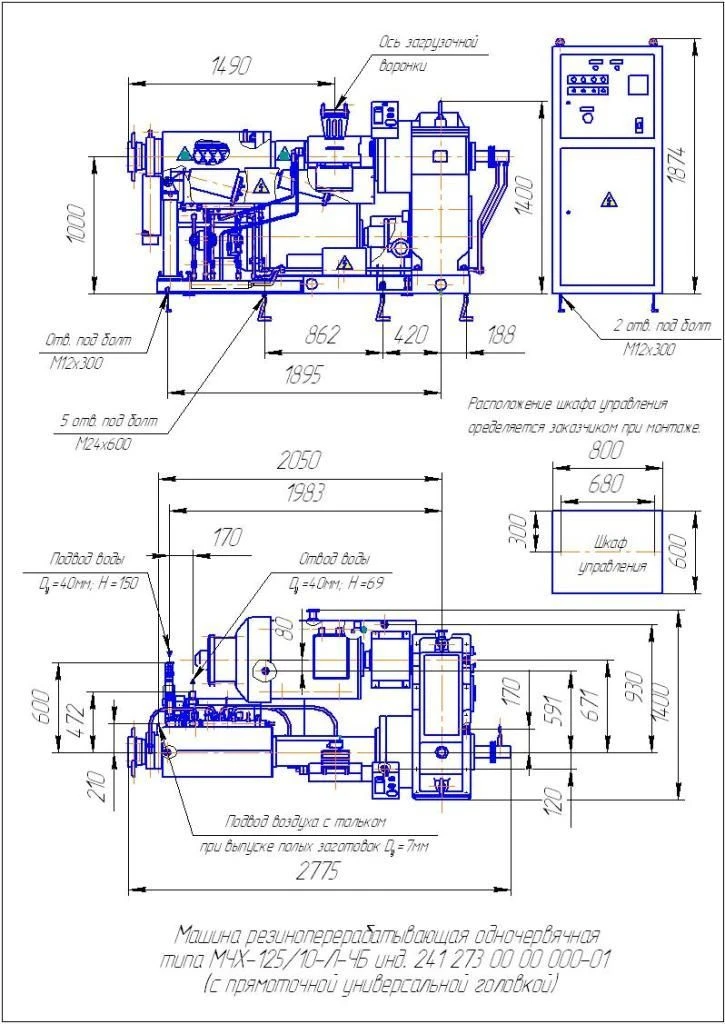

Rubber Processing Machine MCHX-125/10-L-CHB for Extruding Rubber Mixtures

Designed for processing of rubber mixtures by extruding method (syringing) through the forming elements of the heads. Rubber processing machine single worm, cold feeding (the temperature of the mixture when entering the feed hopper no more than 15 ... 30 ° C), with a worm diameter of 125 mm, the ratio of the working length of the worm to its diameter (L / D) = 10, productivity 1300 ...

850 kg / h, with a left-sided location of the service area in the course of the profile, with an asynchronous motor with a capacity of 90 kW and frequency converter, with straight universal head. The machine can be supplied with angle, T-head, slotted, filter head. For processing silicone rubber mixtures, the machine is equipped with a worm with special threading, and the heat-automatic system has no heating of thermal control zones.

To ensure high performance and quality processing of rubber mixtures by the machine, the cross-sectional area of profiled blanks and profiles should be from 3.5 to 35 cm2....
