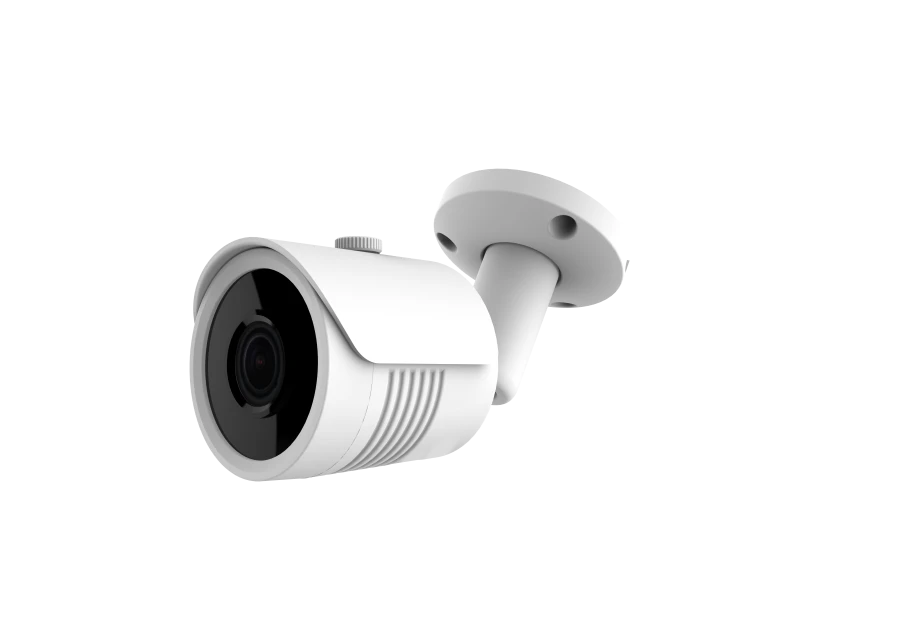

RVX-4314-2.8 Machine Vision Camera - Outdoor Surveillance Solution

RVX-4314-2.8 Machine Vision Camera for Effective Outdoor Surveillance

Manufacturer:RUBETEK RUS LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Camera with machine vision RVX-4314-2.8 is designed for the organisation of street video surveillance. The camera is equipped with IR-illumination, providing visibility of the object of observation in the absence of light or insufficient illumination. The camera has a lens with a fixed focal length.

The camera is equipped with an additional filter on the power supply and has built-in protection against polarity reversal. The camera can be installed on any conductive surface in a horizontal or vertical position. The installation location is selected according to the viewing angles and the area to be monitored.

The device is designed for continuous round-the-clock operation and belongs to the restorable, periodically serviced products.

Specifications

Weight, not more
350 year
Overall dimensions (D x H x W), mm
158x76x73
Degree of enclosure protection
IP66
Case
Cylinder, metal
Operating temperature range
-40...50 °C
OSD title display
Text, date, time
Network interface
RJ-45 (10/100Base-T)
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, UDP, ONVIF
Video transmission protocol
RTP over TCP / RTP over UDP
Extended dynamic range
DWDR
Noise reduction
2DNR, 3DNR
Backlight compensation technology
BLC, HLC
Bitrate
512 - 8192 Kbps, VBR / CBR (variation ? 10%)
Frame rate, fps
Up to 25
Resolution of additional video stream
Up to 1280 x 720
Resolution of the main video stream
Up to 2560 x 1440
Simultaneous transmission of 2 video streams
Got it
Compression formats
N.264 BP / N.264 MP / N.264 HP / H.265 MP
IR illumination
25 m, Smart IR
Camera viewing angles, degrees
105 (D), 60 (C), 120 (E)
Focal length
2.8 mm
Electronic shutter, s
PAL/NTSC: 1/3 – 1/100000
Day/Night mode
IR filter with auto switching
Sensitivity
0.01 lux (color), 0.001 lux (black and white)
Sensor
1/3 CMOS progressive scan sensor
Power consumption, max.
12.95 W
Nutrition
DC 12V, PoE IEEE 802.3af
Camera resolution, MP
4

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
