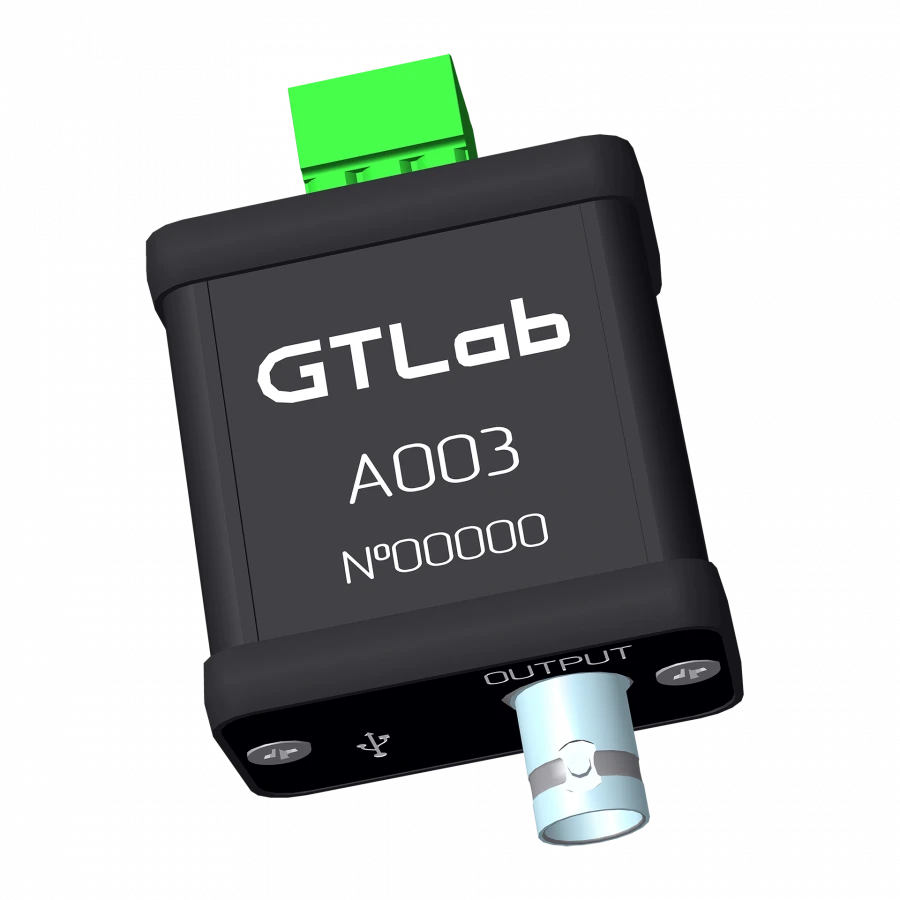

Signal Conditioner A003-02 for Accelerometers and Sensors

Available for Import

Signal Conditioner A003-02 for Connecting Accelerometers and Sensors

Analog Signal Conditioners

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The coordinating signal conditioners with voltage output are designed for connection of accelerometers, impact hammers, force sensors and dynamic pressure sensors to measuring equipment. They separate the constant component of the power supply and the variable component of the signal of voltage output sensors or charge output sensors connected via signal conditioners A121, A122.

Specifications

Sensor supply voltage

+5? ± 10 %

Operating frequency range (±1 dB AC frequency flatness)

0.5 ... 30 000 Hz

Power supply voltage

+5? ± 10 %

Consumption current

< 50 mA

Operating temperature range

-40 ... +85 °?

Output impedance

< 100 ohms

Input connector

terminal blocks

Output connector

BNC

Connectors for power supply connection

Micro USB

Housing material

Aluminum

Weight

100 ?

Assignment

for sensors with voltage output.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
