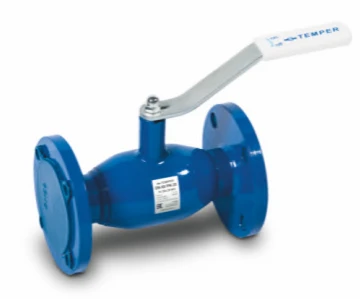

Standard Flanged Ball Valve 286 Short Length, Model 28620050

Available for Import

Standard Flanged Ball Valve 286 - Ideal for Heating and Oil Systems

Ball Valves

Manufacturer:TEMPER LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Standard bore ball valve 286 flanged (short length), 28620025 284 standard bore ball valve flanged (PN 25) / flanged (PN 25), 28420065.Standard bore ball valve 284 flanged (PN 25) / flanged (PN 25), 28420100.Standard bore ball valve 286 flanged (short length), 28620040.Ball valve standard bore 286 flanged (short length), 28620020

Standard bore ball valve 286 flanged (short length), 28620065.Standard bore ball valve 286 flanged (short length), 28620100.Standard bore ball valve 286 flanged (short length), 28620015 Standard bore ball valve 286 flanged (short length), 28620032.Standard bore ball valve 286 flanged (short length), 28620125.Standard bore ball valve 286 flanged (short length), 28620080.Standard bore ball valve 284 flanged (PN 25) / flanged (PN 25), 28420080.

Description

Connection type:

flanged

Working Environment:

District heating networks, oil products, fuels and lubricants,
other liquids free from abrasive contaminants.
Natural gas, liquefied petroleum gas, gaseous media not aggressive towards
valve materials.

Specifications

Airtightness class

Class "A" GOST R54808-2011

Diameter

SBVVBG mm

Nominal pressure

40 MPa

Construction length

180 mm

Connection type

Flanged

Aisle

Standard

Flange for mounting the actuator

without flange

Enclosure materials

Steel 20/09G2S/12Cr18Ni10T

Minimum temperature, up to

-40 °C

Maximum temperature, up to

200 °C

Service life, at least

25 year

Warranty period

3 year

Warranty period, cycles

10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
