Available for Import

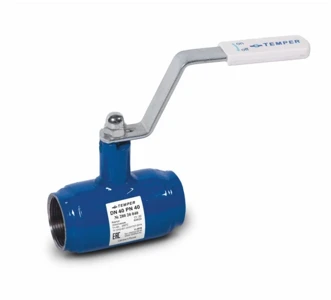

Standard Passage Ball Valve for Pipe Connection - Model 28020100 for Various Applications
Manufacturer:
TEMPER LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Connection type:
threaded/threaded
Working Environment:
Heat water, oil products, petroleum products, fuels and lubricants, gaseous and other working media that are not aggressive to the materials of valve parts.
threaded/threaded
Working Environment:
Heat water, oil products, petroleum products, fuels and lubricants, gaseous and other working media that are not aggressive to the materials of valve parts.
Specifications
Airtightness class
Class "A" GOST R54808-2011
Diameter
100 mm
Nominal pressure
25 MPa
Construction length
240 mm
Weight
11.4
Connection type
coupling
Aisle
Standard
Flange for mounting the actuator
without flange
Execution
ordinary
Enclosure materials
Steel 20/09G2S/12Cr18Ni10T
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
25 year
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
