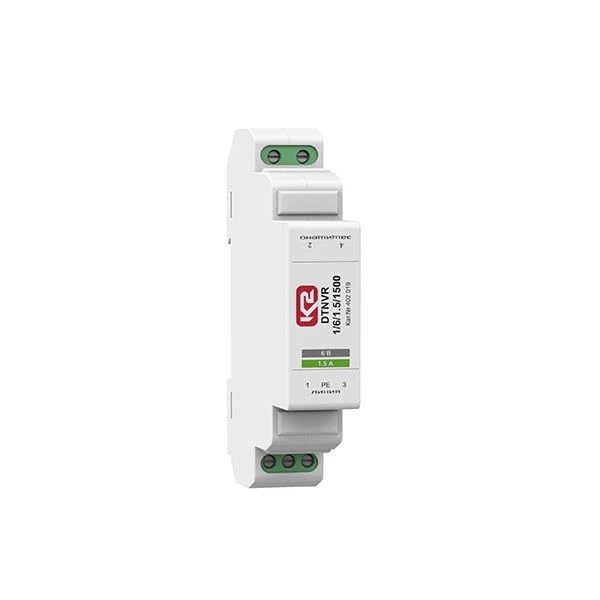

Surge Protection Device DTNVR 1/6/3/1500 (LT) for Automation Equipment Protection

UZIP series DTNVR */**/3/1500, TU 3428-002-79740390-2007 are designed to protect the equipment of distributed networks of industrial automation equipment (ACS, ASCUE, etc.), digital data transmission interfaces, digital data transmission interfaces, etc., etc.), digital data transmission interfaces, signal lines of control and measurement systems, as well as for protection of secondary power supply circuits, etc. against impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) within 0B - 2 lightning protection zones in accordance with GOST R IEC 62305-1-2010. Rated current IL = 3 A.

Number of protected pairs of conductors 1, connection by means of screw terminals 4,00 mm. Capable of passing the maximum discharge current In(8/20)= 20 kA. Data transfer rate up to 1 Mbit/s.
