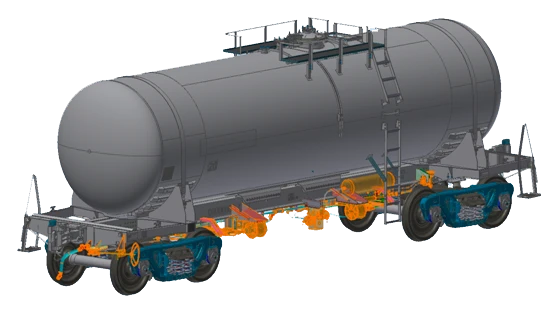

Technical Acid Transport Tank Car Model 15-5200 for Safe Transportation

Rail Tank Wagons

Manufacturer:URALVAGONZAVOD OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Four-axle tank wagon (hereinafter referred to as tank wagon) is designed for transportation of technical sulphuric acid according to GOST 2184, with mass fraction of monohydrate from 92,5% to 99% on the railways of 1520 mm gauge of the Russian Federation, CIS countries, Georgia. Latvian Republic, Republic of Lithuania, Republic of Estonia.

The tank is manufactured in UHL category 1 according to GOST 15150 with ensuring operational reliability at lower operating and limit temperature values of 60°?.

The advantage of the tanker in comparison with its analogue is increased load capacity up to 77 tonnes, increased boiler volume up to 44.1 m3, which is achieved by using bogies with axle load of 25 tonnes.

Specifications

Type of product according to PP RF 616

Tank cars

Assignment

For the carriage of technical sulphuric acid

Payload

77 t

Cotter diameter internal nom.

2400 mm

Tare weight

22.7 t

Length along the coupling axes of couplers

12020 mm

Boiler volume full

44.1

Useful boiler volume

42.4

Length of boiler

10174 mm

Base of tank

7800 mm

Trolley base (model 18-194-1)

1850 mm

Height of coupler axis from rail head level

1040...1080 mm

Design speed

120

Dimension according to GOST 9238

02-VM

Maximum working pressure in the boiler (at product discharge), MPa (kgf/cm²)

0,25 (2,55)

Trial pressure in the boiler during hydraulic tests, MPa (kgf/cm²)

0.7560±0,0378 (7,7100±0,3855)*

Design pressure, MPa (kgf/cm2)

0,598 (6,1)*

Overpressure in the boiler according to safety valve adjustment, MPa (kgf/cm²)

0,255-0,294 (2,6-3,0)

External overpressure according to inlet valve adjustment, MPa (kgf/cm²)

minus 0.01 +0.01 (0.1 +0.1)

Model of two-axle cart

18-194-1, type 3 GOST 9246

Type of coupling

CA-3

Number of ladders: -external; -internal.

-outside - 2, inside - none. pcs

Loading method

closed top

Discharge method

upper compartment by squeezing or siphoning

SMGS tank code

L4DN

Length along frame end beams

10884 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
