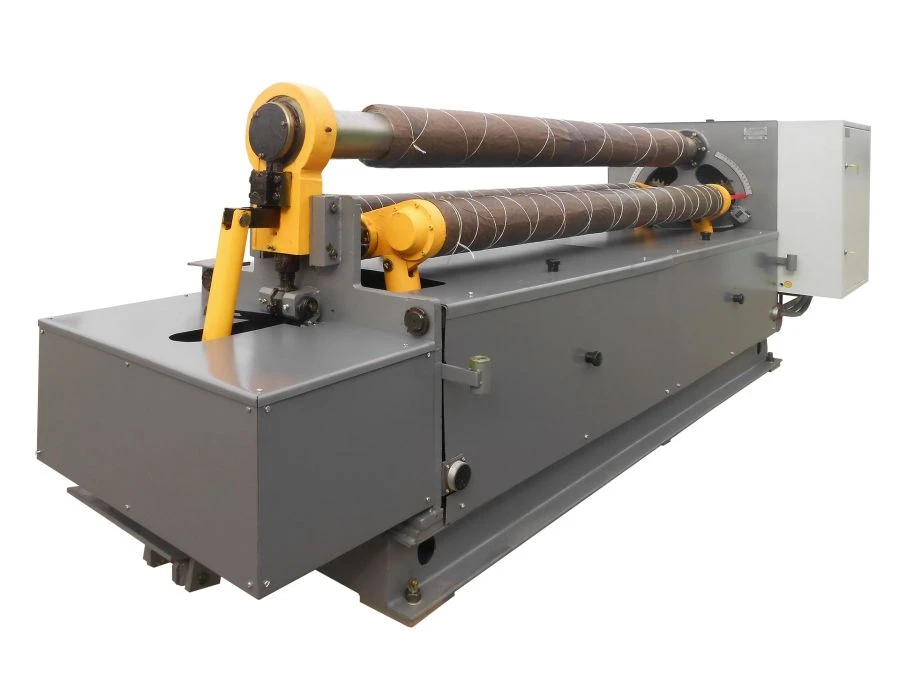

Three-Roll Plate Bending Machine IB 2216 for Efficient Metal Bending

Metal Bending Machines

Manufacturer: Promstroymash LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Machine sheet bending three-roll IB2216 are designed for bending cylindrical billets from sheet material with yield strength t = 250 MPa (25 kgf/mm.sq.) in the cold state. The bending of conical blanks from sheet material is allowed on the sheet bender IB2216 if they are completed with the appropriate fixture. The dimensions of conical blanks are regulated by the technical documentation on the machine. In order to expand the technological capabilities of the machine can be completed with tools for bending angles, strips, squares, pipes, channels.

Specifications

Type of product according to PP RF 616

Metal bending machines

The greatest thickness of the bending plate made of material with yield strength t=250 MPa (25 kgf/mm2):

The greatest thickness of the sheet to be bent when bending from material with yield strength t=250 MPa (25 kgf/mm2):

Sheet width

2000 mm

Smallest bending radius

125 mm

Diameter of top roll

180 mm

Main motor power

5.5 kW

Main motor speed

960

Electric motor power of the roll adjustment drive motor

1.5 kW

Speed of the electric motor of the roller adjustment drive motor

940

Tilt support drive motor capacity

0.37 kW

Frequency of rotation of the tilt support drive motor

900

Motor power of the support mechanism

0.75 kW

Support motor motor speed

700 kW

Electric motor power of the product removal mechanism

0.55 kW

Rotational speed of the electric motor of the product removal mechanism

670

Machine weight with means of mechanization

2900 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
