Available for Import

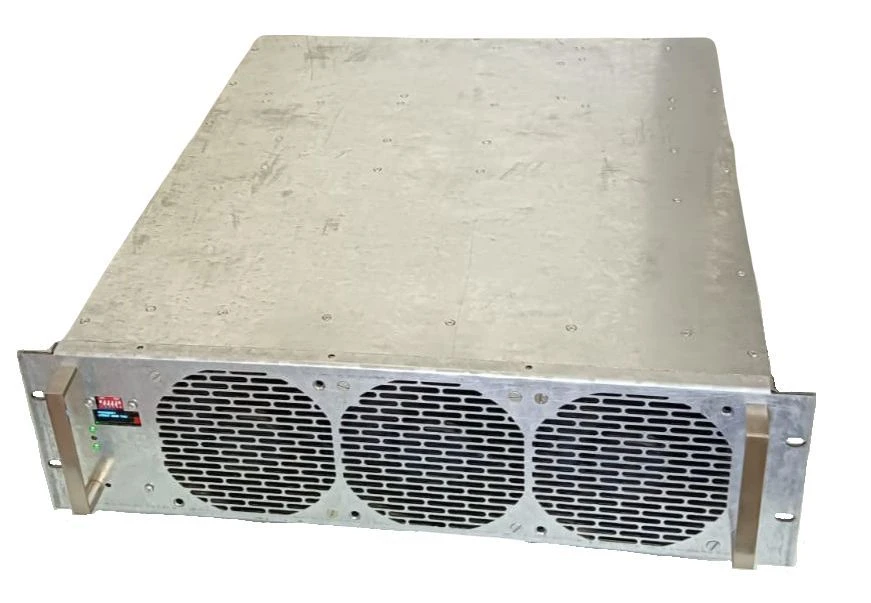

Universal Electronic Power Module UESM-30 for Efficient AC to DC Conversion

Static Power Converters

Manufacturer: UPPO OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The universal electronic power module (hereinafter referred to as UESM-30) is designed to convert AC voltage into DC with the function of power factor correction for operation as part of electric charging stations of electric vehicles. UESM-30 consists of modules of power factor corrector (PFC) and DC converter (DC converter). The PPT module has 2 modes of operation: voltage stabilisation and current stabilisation. The UESM has the possibility of parallel switching of channels.

Specifications

Input voltage of three-phase network, V

260-480

Input inrush current, max.

60 A

Output voltage range

50...1000 V

Output current range

0...100 A

Rated power consumption

30 kW

Power factor, at output load (100 per cent), not less than

0.99 %

Efficiency (at load power - 50 %), not less than

95 %

Ambient temperature during operation, ?

-40 to +75
