Available for Import

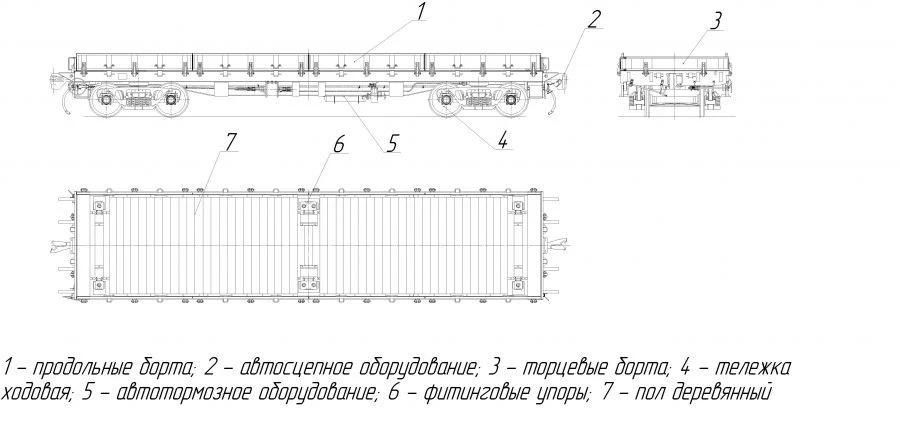

Universal Platform Wagon Model 13-6719 for Efficient Transportation
Manufacturer:
TRANSMAШ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Project VAER.661379.001 TU
Specifications
Type of product according to PP RF 616
Railroad type flat cars
Type
universal flat wagon
Payload
72 t
Tare weight
21 t
Number of axles
4 pcs
Maximum design static axial load
230;5
Maximum design static linear load
6;43
Car length along the coupling axes of couplers
14620 mm
Car length along frame end beams
13400 mm
Length inside body (between end boards)
13280 mm
Wagon base
9720 mm
Wagon height from top of rail heads to floor level
1360 mm
Maximum height of the wagon from the level of the top of the rail heads
1870 mm
Wagon maximum width (at the rack brackets)
3117 mm
Maximum wagon width with folded longitudinal sides
3178 mm
Wagon frame width
2870 mm
Width of wagon inside the body (between side boards)
2750 mm
Floor area
37
Flooring
wooden
Dimensions according to GOST 9238 of the body
0-vm
Dimensions according to GOST 9238 of the cart
02-VM
Height of coupling axle from the level of the top of rail heads
1040 mm
Design speed
120
Track width
1520 mm
Model of biaxial cart type 2 GOST 9246
18-9896 TU 3183-058-71390252-2011
Number of longitudinal boards
8 pcs
Number of end boards
2 pcs
Number of hinged fitting stops for securing single containers
8 pcs
Number of hinged fitting stops for securing twin containers.
2 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
