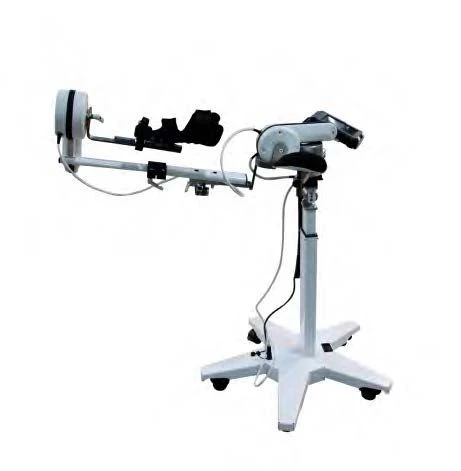

Upper Limb Robotic Mechanotherapy Device "ORTORENT", Model "Ortorrent-Elbow Compact

Available for Import

Upper Limb Robotic Mechanotherapy Device "ORTORENT" for Effective Rehabilitation

Medical Equipment Supplies

Manufacturer: Ortorent LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The motor device for robotic mechanotherapy of joints of the upper extremities "ORTORENT", model "Orthorent Elbow Compact" ORTO.941569.010, is designed to provide motor therapy to prevent immobilisation complications, accelerated restoration of painless movements in the joint and accelerated healing; the model is intended for treatment of most injuries, postoperative conditions and diseases of the elbow joint

Specifications

Type of product according to PP RF 616

Medical devices, including surgical, other, not included in other groupings

Set composition

Executive mechanism for elbow joint development; Hand control panel; Operating instructions; Data sheet

Overall dimensions of the device (WxD min\max xHmin\max)

1305 mm

Transport dimensions of the unit (WxDxH)

285 mm

Transport dimensions of the device in the box (WxDxH)

290 mm

Apparatus weight

20 kg

Dimensions of the chair (WxDxH)

1010 mm

Diameter of chair handle

22 mm

Chair wheel diameter

SBVVBG mm

Chair weight

17 kg

Dimensions of armrest for arm to chair (WxDxH)

280 mm

Maximum permissible load on chair support parts, kgf

1471

Maximum patient weight

150 kg

Size of the hand control panel (WxDxH)

45 mm

Supported diameter of the patient's arm for cuff fixation, mm

Up to 100

Height and length adjustment

mechanical

Height adjustment range (from floor to forearm support min\max)

1250 mm

Height adjustment range (from seat to forearm support min\max)

750 mm

Forearm length min\max

460 mm

Elbow movement characteristics: Extension/flexion, degrees

- 5 to 140

Characteristics of elbow joint movements: Pronation/supination, degrees

90 to 90

Minimal patient height

110 cm

Maximum patient height

200 cm

Maximum power consumption

Power consumption

Weight of armrest for arm to chair

1.2 kg

Weight of the hand control panel

0.4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
