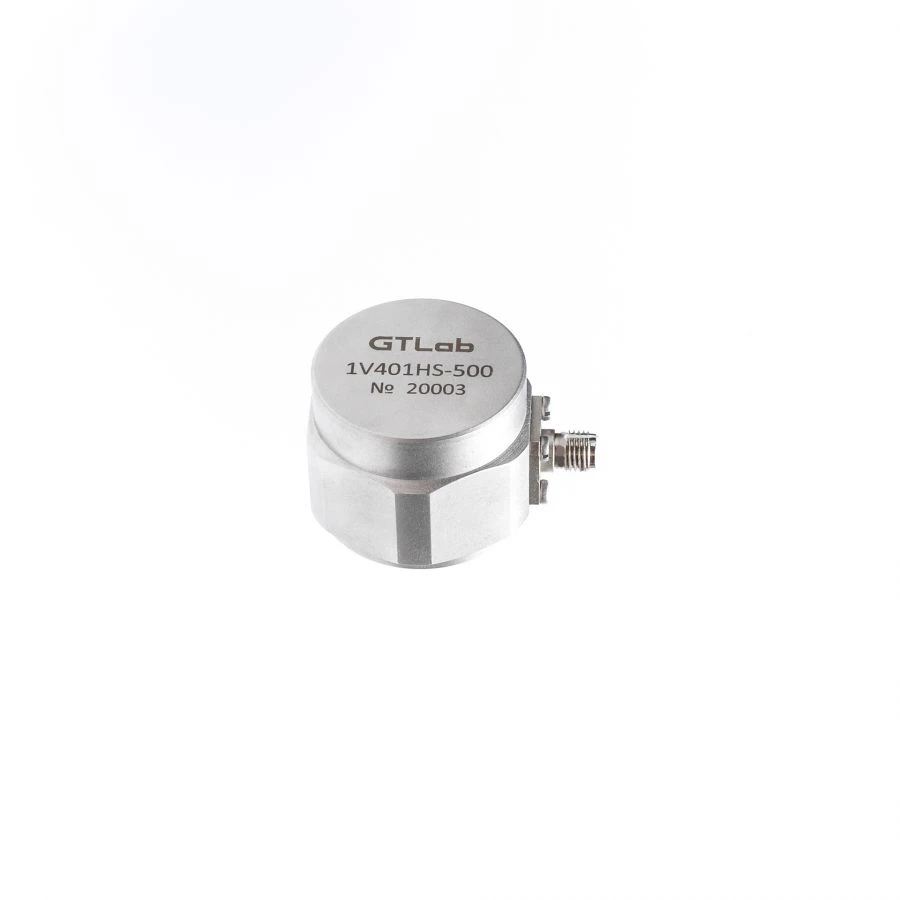

Voltage Output Accelerometer 1V401HS-500 for Vibration and Shock Measurement

Movement Measurement Devices

Manufacturer:GTLAB LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

???????????? 1V401HS-1000

Description

Voltage output accelerometers are electromechanical transducers with increased noise immunity for measuring vibration and shock accelerations. Highly sensitive vibration acceleration transducers with voltage output are designed for measuring parameters of low-frequency in vibration processes of low intensity.

Specifications

Conversion factor

50 mV/(m-s-2)

Relative transverse conversion ratio

< 5 %

Maximum value of the measured acceleration amplitude

± 100 m/s2

Maximum impact (peak value)

± 1,000 m/s2

Operating temperature range

-55 ... +125 °?

Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons

0,04 ... 4 500 Hz 0,1 ... 3 000 Hz 0,2 ... 1 800 Hz

Natural frequency in fixed state

> 9 kHz

Noise level, RMS (0.1 ... 2 000 Hz)

< 0.0001 m/s2

Output impedance

< 100 ohms

Power supply: ? voltage ? current

+ (18 ... 30) V 2 ... 20 mA

DC output voltage level

8 ... 13 ?

Coefficient of influence of ambient temperature

± 0,2 %/ °?

Time to establish operating mode

10 ?

Housing material

stainless steel

Weight (without cable)

160 ?

Variable temperature sensitivity VHF cutoff frequency 0.2 Hz 3 Hz

0,002 g/°C 0,0005 g/°C

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
