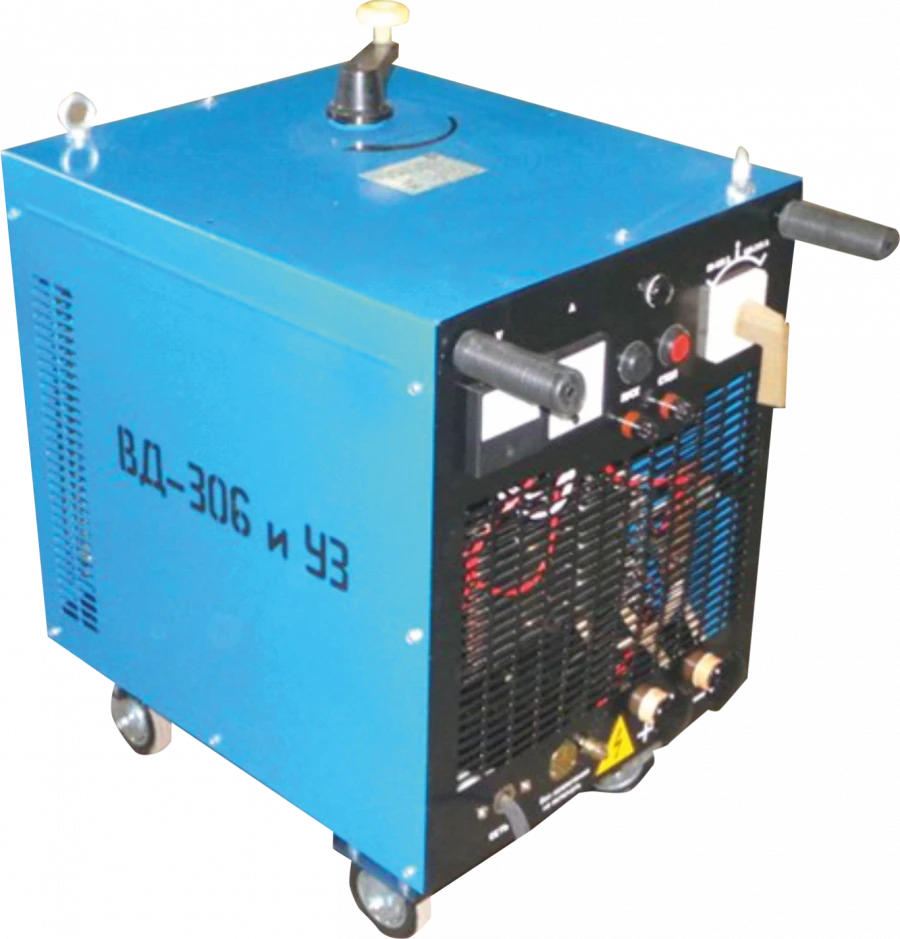

Welding Rectifier VD-306 I U3 for Manual Arc Welding and Metal Cutting

Electric Soldering & Welding Machines

Manufacturer: UZSNGU "ISKRA" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The rectifier VD-306 and U3 is designed for supplying electric arc with direct current at manual arc welding, cutting and surfacing of metals. It is designed to work outdoors in field conditions. The rated parameters of the unit refer to its operation at an altitude of not more than 1000m above sea level, ambient air temperature from +40°C to -45°C and relative air humidity (monthly average) up to 80% at +15°C. It is not allowed to use the rectifier in explosive environment, as well as environment containing caustic vapours and gases destroying metals and insulation.

Specifications

Rated welding current

315 A

Rated operating voltage

6 V

Welding current control limits

50...320 A

Welding current control limits, small range

50...150 A

Welding current control limits, large range

125...320 A

No-load voltage

70 V

Relative duration of PU load

60 %

Rated supply voltage

380 V

Network frequency

SBVVBG

Power consumption at rated load, not more

Primary current, max.

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording A

Efficiency factor, not less than

64 %

Winding insulation class

Weight, not more

120 kg

Total average service life, not less than

5 year

Length

720 mm

Width

510 mm

Height

820 mm

Applicability coefficient

Degree of protection

IP22

Power factor (cos ?), not less than

0.67

Number of phases

Class according to the method of protection of a person against electric shock

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
