نظام التشخيص بالموجات فوق الصوتية "رو سكان 60" موديل TU 26.60.12-002-98204792-2017 مع الملحقات

متاح للاستيراد

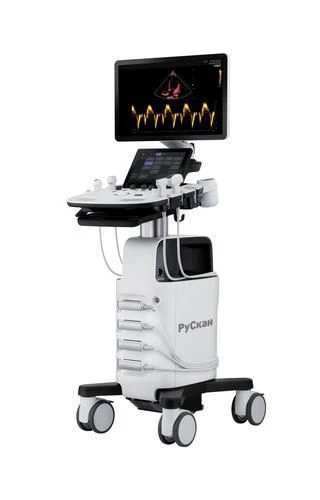

نظام التشخيص بالموجات فوق الصوتية "رو سكان 60" للتطبيقات السريرية

Ultrasound Diagnostic Devices

الشركة المصنعة:OJSC NPO "SCANER"

السعر:طلب عرض سعر

أسعار الجملة متاحة

شروط FOB و CIF و EXW متاحة

استفسار بالبريد الإلكتروني

الوصف

هذا ultrasound diagnostic devices مصنوع في روسيا ومتاح للاستيراد إلى الأسواق العالمية. المنتجات الروسية معروفة بمتانتها وموثوقيتها ونسبة السعر إلى الأداء الممتازة.

للحصول على مواصفات المنتج التفصيلية، يرجى الاطلاع على علامة تبويب المواصفات. اتصل بفريقنا لطلب معلومات الأسعار والتوافر والشحن.

المواصفات

Service life

5 years.

Length of warranty period

12 months from date of shipment.

Waste class according to SanPiN 2.1.7.2790-10

A and B.

Software security class

Characteristics of a dedicated medical LCD monitor

Anti-reflective coating; Possibility of user adjustment of monitor parameters (brightness, contrast); Screen diagonal size not less than 21,5 inches; Resolution not less than 1980x1080 pixels; Frame rate 60 Hz; Viewing angle: 120° left/right; 90° left/righ

Characteristics of the touchmonitor

Number of pixels - 1280 x 800; 10.1-inch LCD monitor (with LED backlight, hereinafter referred to as).

External signal connections (ports)

HDMI(output); USB (for connecting USB peripheral devices); Network connector (for LAN connection, patient data can be transferred to other servers via DICOM); S-VHS (output for connecting S-VHS VCR); Audio output; Port

Depth

730 mm

Width

520 mm

Height

1620 mm

Gross weight

95 kg

Net weight

57 kg

Amplification

0-100

Working part type

Ultrasound transducers shall be type BF; ECG leads shall be type CF with defibrillation protection.

Physiological signal detection channel

Input voltage range from 0,2 to 5 mV; input impedance not less than 10 Mohm.

Number of tricks

1-4 focals

Maximum scanning depth

38 cm

Adjusting the signal gain

Total and 1 - 8 zones.

When operating in the Doppler spectrum mode, ensuring simultaneous audio playback in the selected resolution strobe

Available.

Dynamic range of received signals

30 to 256 dB

Power adjustment

2 to 100 per cent

Performing a self-test to verify operation at power-on

Available

Mode of operation

Continuous (more than 8 hours).

Time to establish operating mode

Less than 3 min.

Degree of safety for use in the presence of flammable anesthetics with air, oxygen or nitrous oxide

Not intended

Sound power level generated by the system

Does not exceed 55 dB

Protection against electric shock

Class I

Rated power consumption value

620

Rated mains frequency

SBVVBG

Rated mains voltage

220 V

Operating conditions

10 to 35 Cº and relative humidity of ambient air not more than 80 % at 25 Cº.

Storage conditions

In storage rooms at temperature from minus 50 to 40 °? and relative humidity not more than 75 % at 15 °?.

Transportation conditions

From minus 50 to 50 °?, relative humidity 75% at 15 °? in covered vehicles: by road transport for a distance up to 1000 km; in railway wagons up to 10000 km; by aeroplane, in heated sealed compartments.

Climatic version according to GOST R 50444

UHL 4.2

Resistance to mechanical effects during operation according to GOST R 50444

group 2

Potential consumer

Therapeutic and prophylactic medical establishments.

Scope of application

Abdominal organ examination; Cardiac examination; Gynaecological examination; Musculoskeletal examination; Obstetric examination; Paediatric examination; Small organ examination; Transcranial Dopplerography; Urological examination

Echogram generation modes

2D mode; M-mode; Colour M-mode; Anatomical mode; Colour Doppler (CD) mode; Pulsed-wave spectral Doppler (PD) mode; Continuous-wave Doppler (CWD) mode; Tissue Doppler Mapping (TDM) mode; Tissue Pulse Mode

ملاحظة: جميع المواصفات مقدمة من الشركة المصنعة وقد تخضع للتغيير. يرجى الاتصال بنا لتأكيد أحدث المواصفات قبل تقديم طلبك.
