1000VBF Machining Center for Precision Turbine Blade Processing
Manufacturer:
Stankoстроение LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

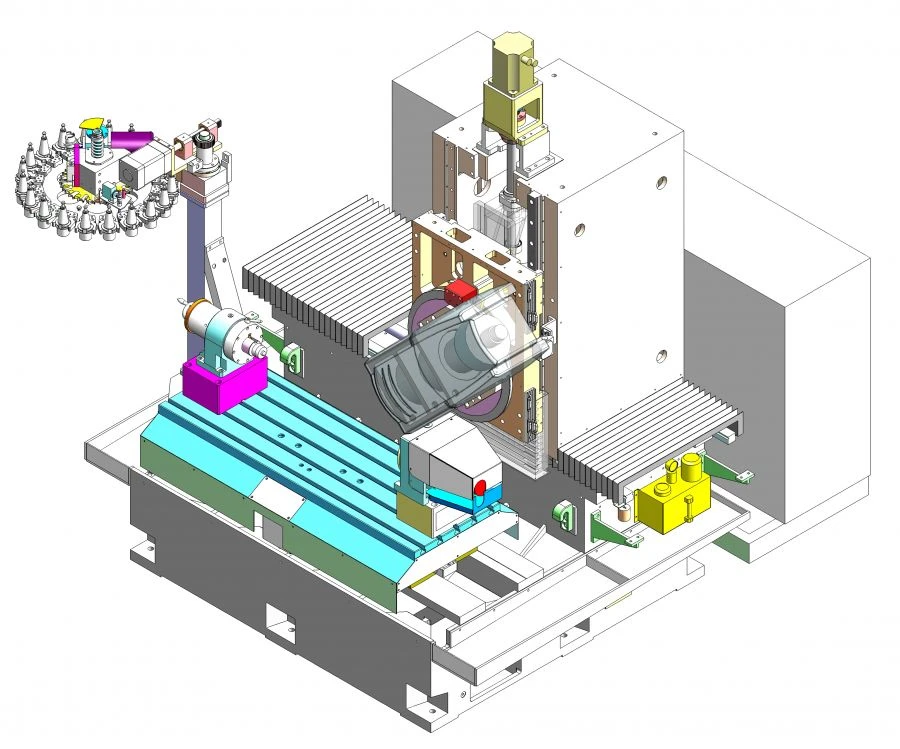

Centre machining model 1000VBF is a specialised machine designed for machining of GTE blades, it can be used for universal tasks. It is equipped with a rotary spindle (B axis), two co-axially mounted rotary tables (or a rotary table and a tailstock). The scope of delivery includes: CNC system, flat table, linear encoders, angular encoders, milling spindle, tool magazine, cutting zone fence, protection of guides and ball screws, automatic pulse lubrication system, pneumatic system, coolant supply and chip cleaning system, electrical cabinet, lighting of the cutting zone and electrical cabinet
Specifications
Machine weight
9300 kg
Tool magazine capacity
20
Linear positioning accuracy
1 mm
Vertical movement
400 mm
Transverse movement
390 mm
Longitudinal movement
1000 (660 at 45 deg) mm
Spindle tilt angle
+/- 45 deg
Tool cone
ISO 40
Faceplate diameter of the rotary table
200 mm
Table length
1500 mm
Table width
450 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
