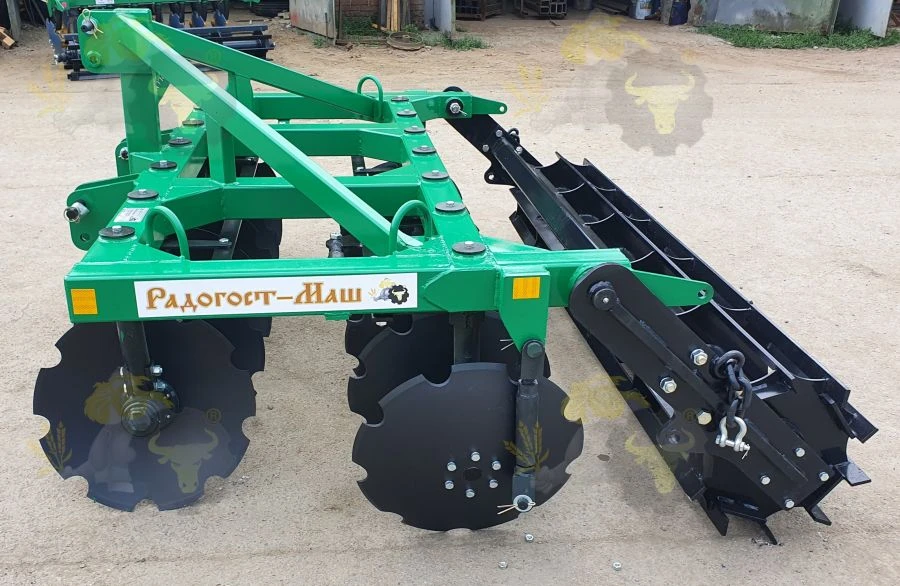

2.4m Mounted Disc Harrow with Roller for Effective Soil Preparation
Manufacturer:
RADOGOST-MASH LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Standard equipment:
16 or 18 implements
The frame is made of 100x100x5 profile pipe,
Distance between posts 320 mm, between rows 800 mm.
Disc "Romashka" 560x5 mm
Lubricated stand with diameter 58,5 mm
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 20x20 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Optional equipment:
Clamp-on cutting unit - the bearing housing is located on the convex (non-working) side of the disc
Maintenance-free cutting unit
Maintenance-free extended life cutting unit
Spring loaded roller support
16 or 18 implements
The frame is made of 100x100x5 profile pipe,
Distance between posts 320 mm, between rows 800 mm.
Disc "Romashka" 560x5 mm
Lubricated stand with diameter 58,5 mm
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 20x20 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Optional equipment:
Clamp-on cutting unit - the bearing housing is located on the convex (non-working) side of the disc
Maintenance-free cutting unit
Maintenance-free extended life cutting unit
Spring loaded roller support
Specifications
Type of product according to PP RF 616
Disc harrows
Distance between rows
800 mm
Weight
965 kg
Number of implement rows
2 pcs
Material of working elements
Steel 65G
Material of frame structures
100x100x5 steel 09g2s
Harrow type
disk drive on a separate rack
Working width
2.4 m
Height
1245 mm
Width
2550 mm
Length
2365 mm
Operating speed
B1/B8 2100/900 MHz
Capacity per hour
2.8
Number of working orans
14 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
