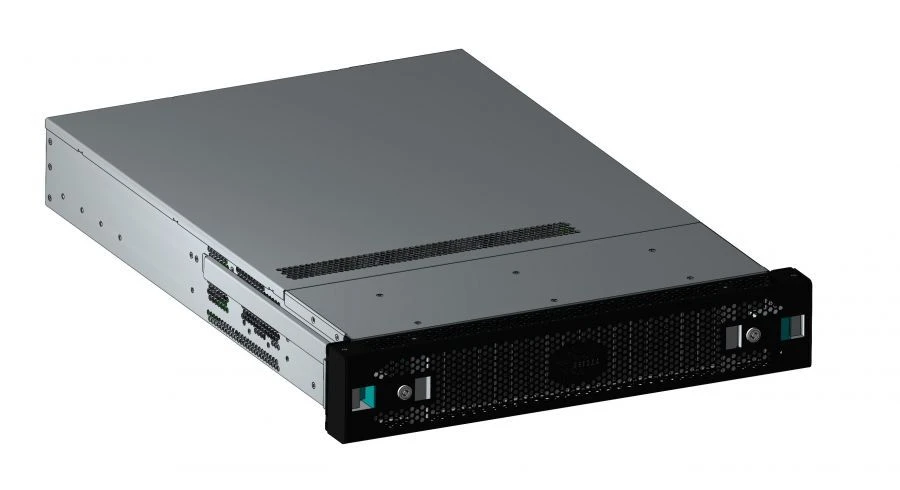

2U Chassis for 19-inch Rack with 24 Slots - BVMТ.301179.001

BVMT.301179.001 Chassis 2x24 is designed to be placed in a rack or cabinet of standard mounting width of 19 inches. The height of the chassis is 2 mounting units (2U). The chassis has 24 bays to accommodate 2.5" standard 15mm thick 2.5" drives on the front side and 2 bays to accommodate 7mm thick 2.5" drives on the rear side.

Drives must be installed in the server in appropriately sized carriages. The carriages are not included with the chassis and must be purchased separately as an accessory. The chassis is suitable for server motherboards of standard EATX size 305 × 330 mm.

Telescopic rails are available to allow the server to be effortlessly slid out of a rack or cabinet for repair or maintenance. The rails are attached directly to the chassis. The rails are not included with the chassis and must be purchased separately as an accessory.
